DR.TD.6631

Star product with popularity

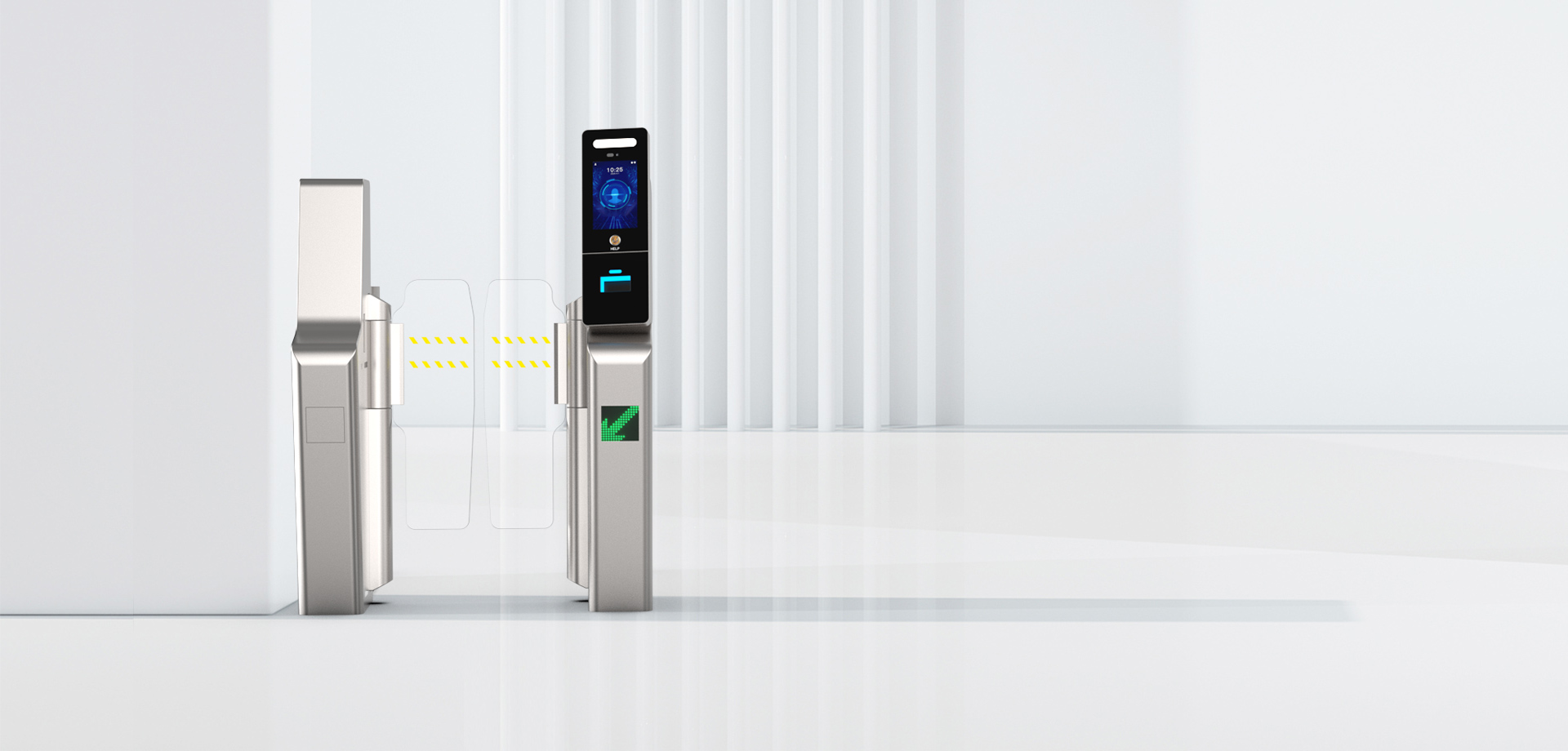

DR.TD.6631 is an automated pre-security e-Gate at airport and immigration checkpoints. With a high integration of boarding pass, identity document, biometric technology and end-to-end passenger process, e-Gate creates a quick, comfortable and convenient immigration process and brings a seamless travel experience. Furthermore, e-Gate provides a super high security level protection and can be customized for more personal requirements.

Get A Free Quote

Facebook lingying Youtube

E-Gate DR.TD.6631

Parameters

Product Dimension

L1725*W200*H1350/1510 mm (single channel; subject to actual)

Drive Unit

DC Servo Motor

Material

SUS304 stainless steel and QA235 cold-rolled plate with spraying process

IR Sensor

16 pairs

Swing Panel

PMMA acrylics (tempered glass for optional)

Power Supply

AC110V/220V±10%V, 50±10%Hz

Input Interface

Dry Contact Signal

Passage Indicator

Red/Green Indicator

Passing Direction

Uni-directional

Passage Width

600-900mm

Passing Speed

8-12 persons/min(subject to actual)

Gate Open Speed

0.3 seconds

Gate Open Angle

90°±5°

Working Environment

Indoor, -25~+70

Relative Humidity

0%-90%, no condensation

MCBF

30 millions times

Noise

55DB

IP Level

IP42

Specification

Communication Mode

COM(RS-232) standard complete power outage CTS-; DSR- complete power on CTS-; DSR+ reader or e-Gate disconnection CTS-; DSR+ reader and e-Gate ready CTS+, DSR+

e-Gate Open Method

Double swing panels design

Appearance Design

Elegant streamline design coordinated with ergonomics

Terminals Design

Reasonable power source, network cable configuration, easy to plug in/out

Screen Display

Support text, image and animation display prompt

Open/Close Status

Configured with switch sensor to control Open/Close status

Speaker

With voice broadcast, built-in two channel speakers. Max output power≥60W

Power Supply Module

Extensible UPS with leakage protection switch and fuse

Physical Lock

Configured with special mechanism key & lock

Electronic Lock

Configured with special electronic lock

LED Indicator

Red/Green/Blue colors; red-pass denied, green-pass allowed, blue-standby status

Alarm System

Support real-time alarm in abnormal status with voice control system configured.

Maintenance

Modular design, easy to install or replace components. Particularly for paper change, power source cables plug in/out and network cables. E-Gate Open/Close with reasonable design, easy to operate.

Emergency Switch

Support quickly changing to barrier-free mode in an emergency

Configuration

1 set

Left chassis & Right Chassis (single channel)

1 set

Industrial PC

1 set

Face Recognition System

1 set

QR Code Scanner

1 set (16 pairs)

IR Sensor

1 set (optional)

UPS

2 sets

Servo Motor

1 set

ID/passport/OCR Reader

1 set

Administrator Release System

1 set

Electrical Security Protection System

1 set

Passing Indicator & Anti-intrusion Alarm System

1 set

Infrared Grating Logic Control System

1 set

Alarm Voice Control System

1 set

E-Gate Logic Control System

1 set

Information Interactive System

1 set

Help System (support Braille)

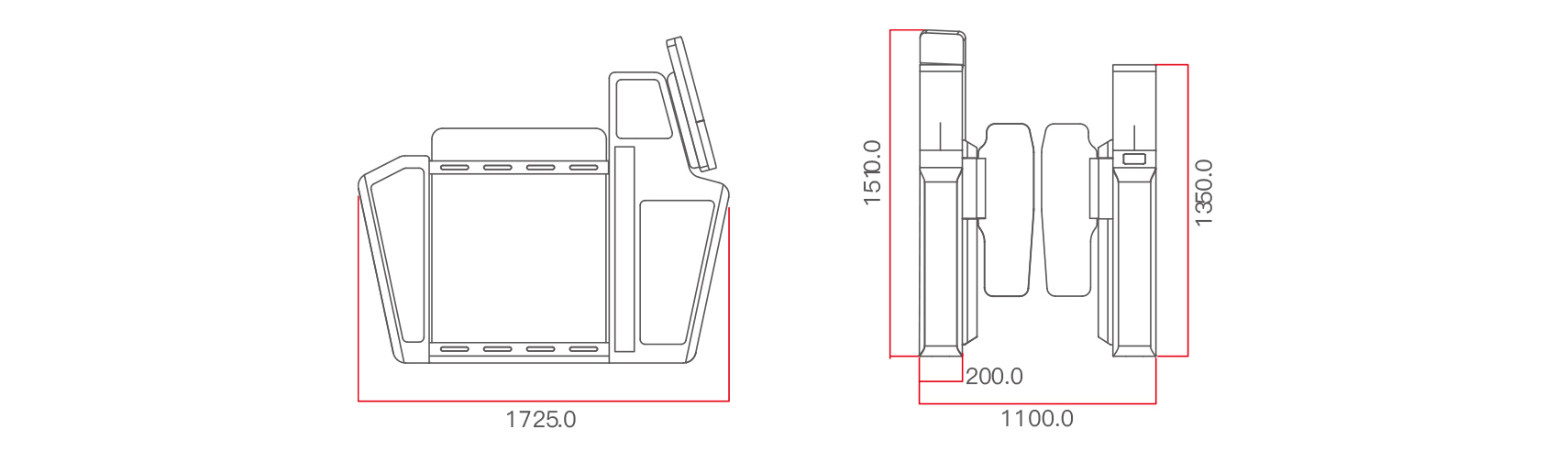

Dimension




×
