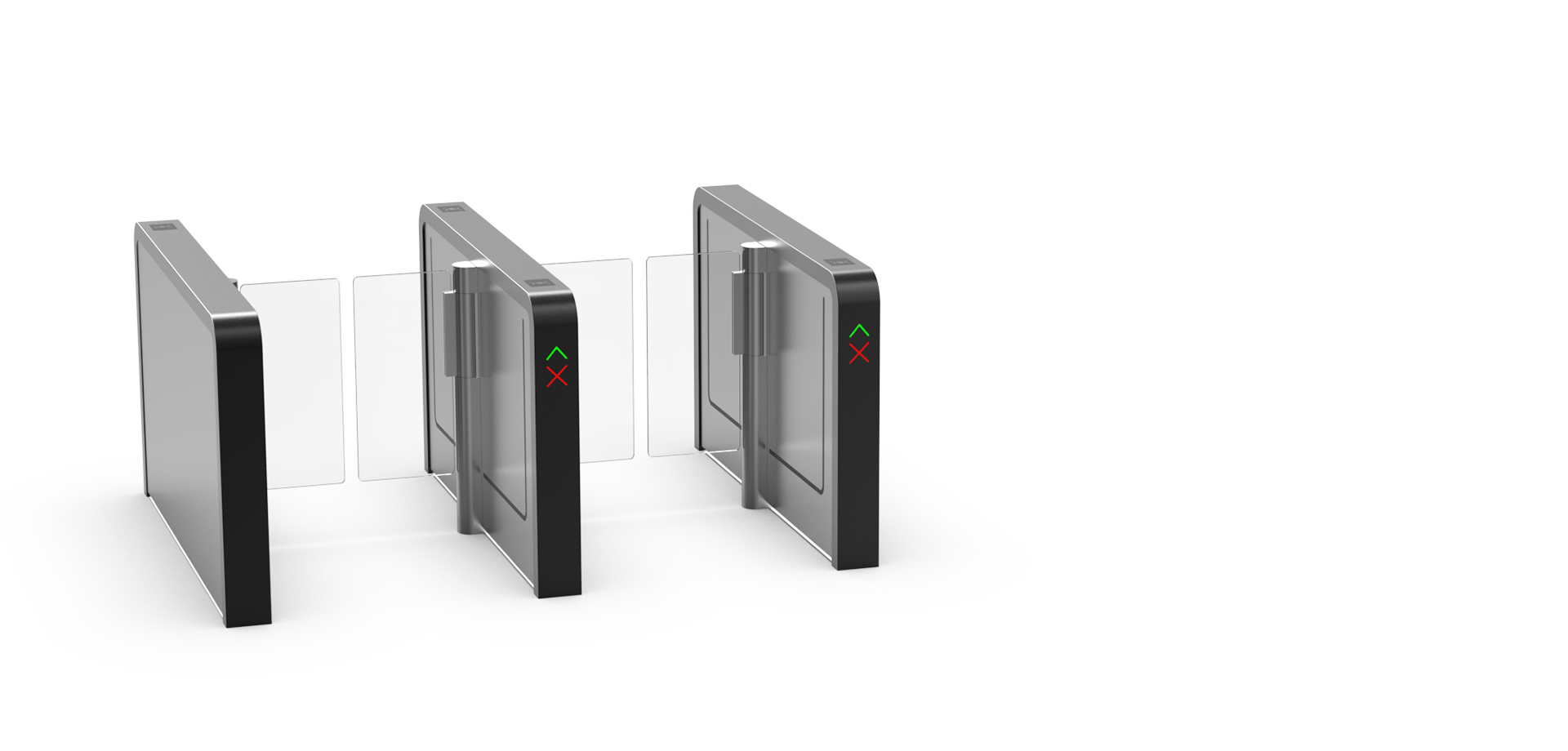

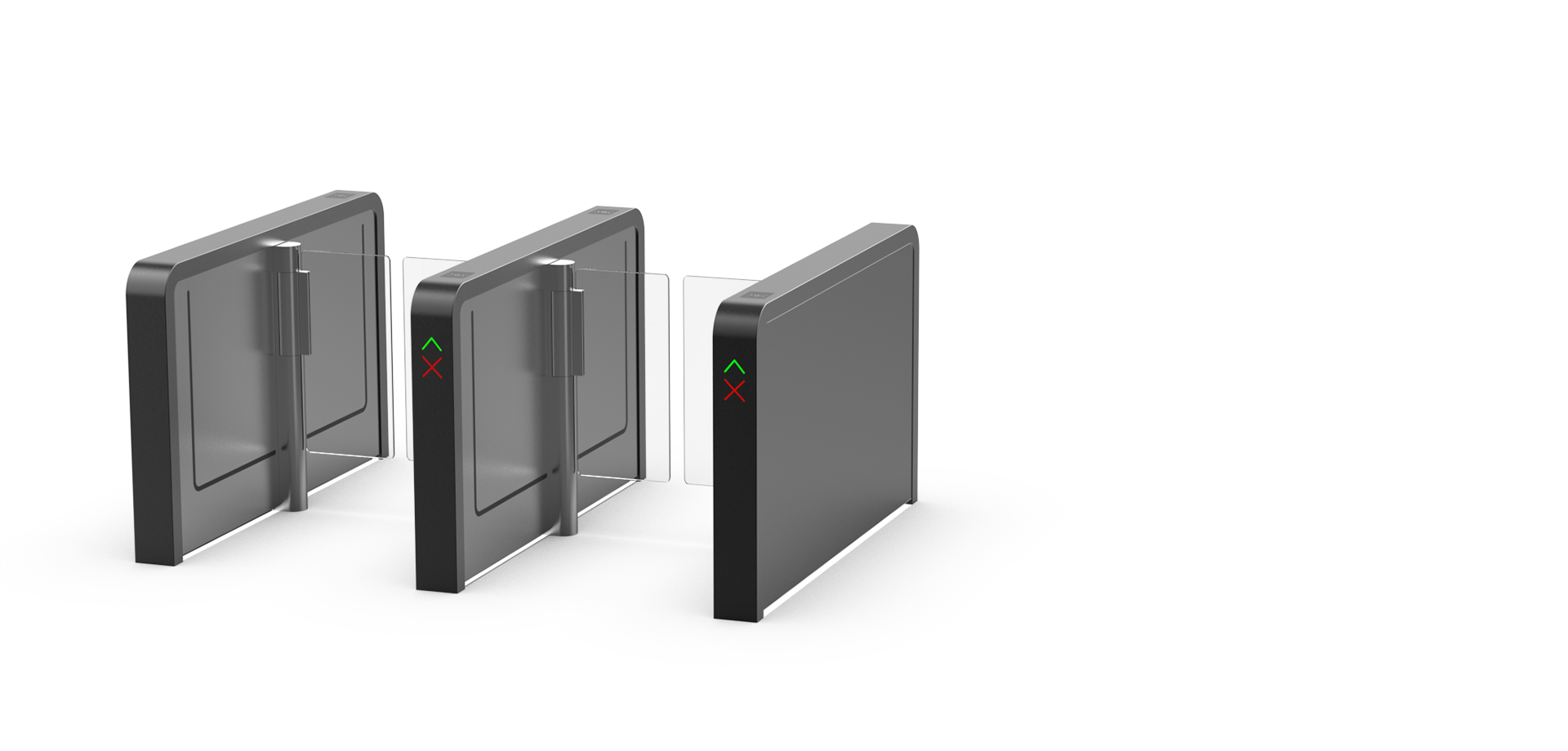

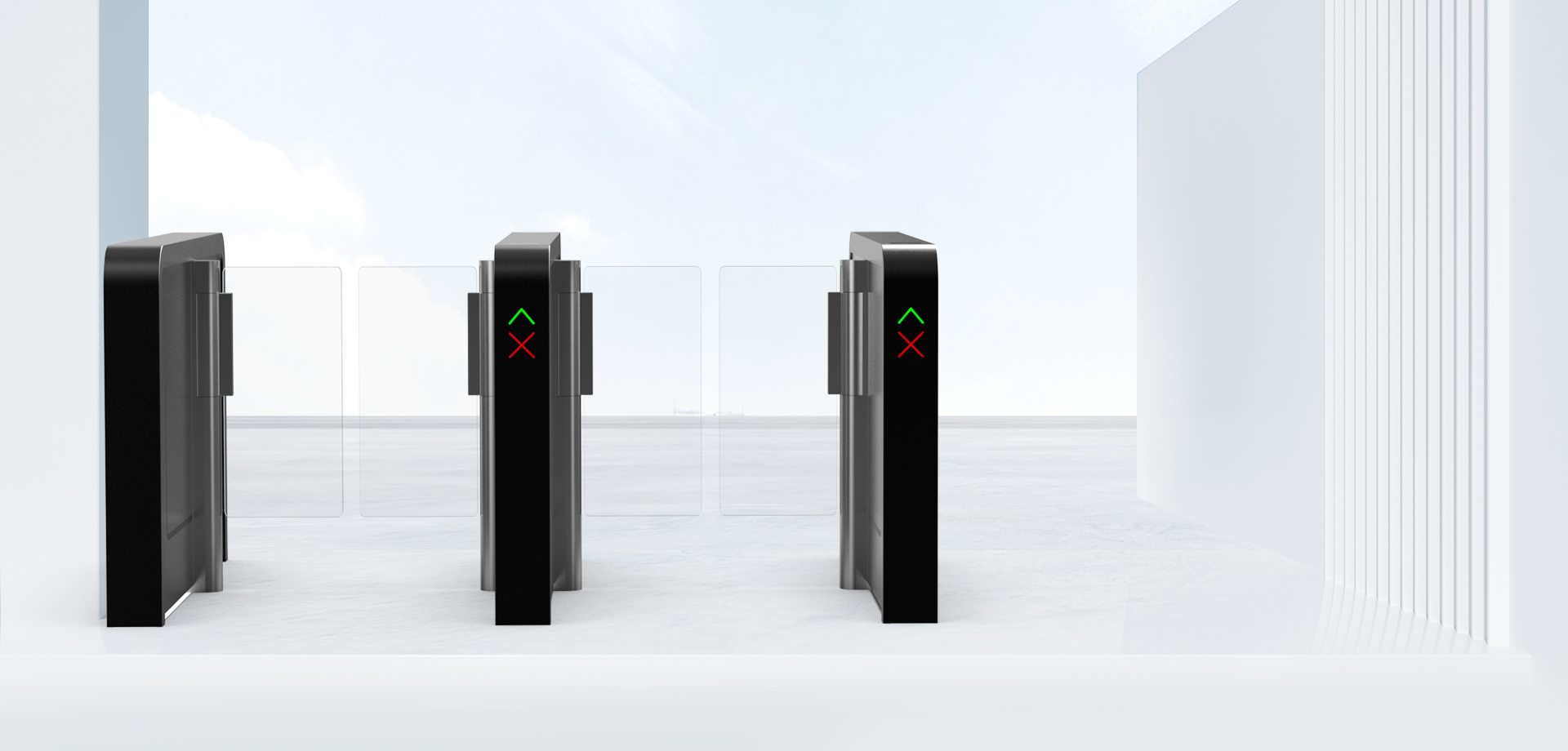

DR.TD.6629C
Star product with popularity
DR.TD.6629C has an exquisite streamlined module appearance design with straight lines and geometrical corner radii. Integrated the advantage of fine materials, multiple optical sensors, precise drive unit & mechanism, advanced artificial intelligence algorithm & security technology etc, it creates more options and possibilities for life.
Get A Free Quote
SPEED GATE DR.TD.6629C | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Swing Panel Material | PMMA Acrylics/Plexiglass (Tempered Glass for Optional) | |
Product Dimension | L1600*W140*H961mm | |

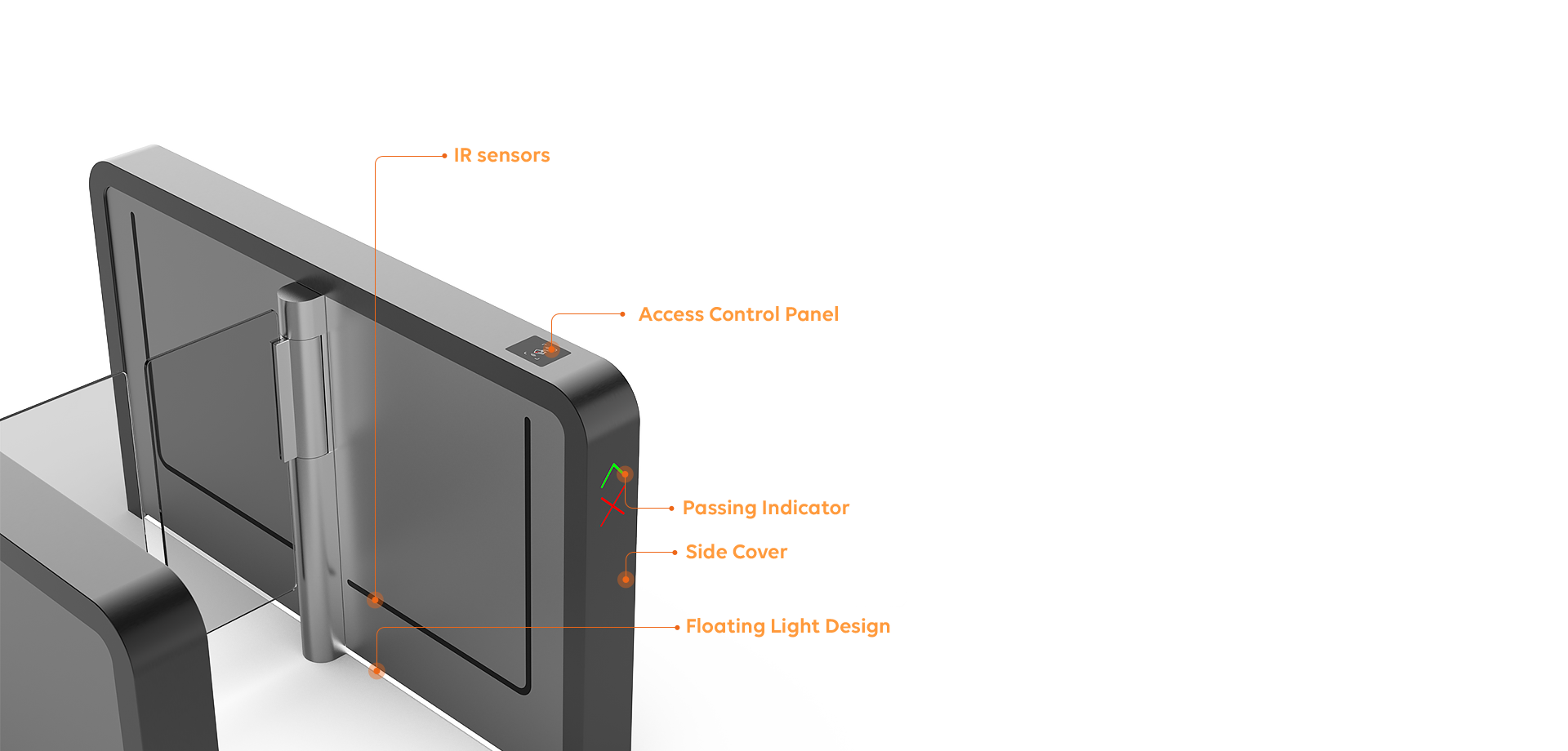

IR Sensor | 14 pairs | |
Electric Para. | Power Supply | AC220±10%V, 50±10%Hz |
Drive Motor | DC24V Servo Motor | |
Power | 100W(left/right),200W(middle) | |
Comm. Protocol | Level Type/Pulse/RS485/RS232 | |
Input Interface | Relay(Dry Contact) | |
Passing Info. | Passage Indicator | Red/Green indicator+ Blue LED light strips |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | 600~900mm, adjustable | |
Passing Speed | 35~50 people/min | |
Performance | Gate Open Speed | Fastest 0.3s, adjustable |
Gate Open Angle | 90°±5° | |
Positioning Method | Servo Motor+Clutch+Encoder | |
Extras | Working Environment | Indoor, -25℃~70℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 20 Million Times Certified | |
Noise | ＜50dB | |
IP Level | IP42 | |

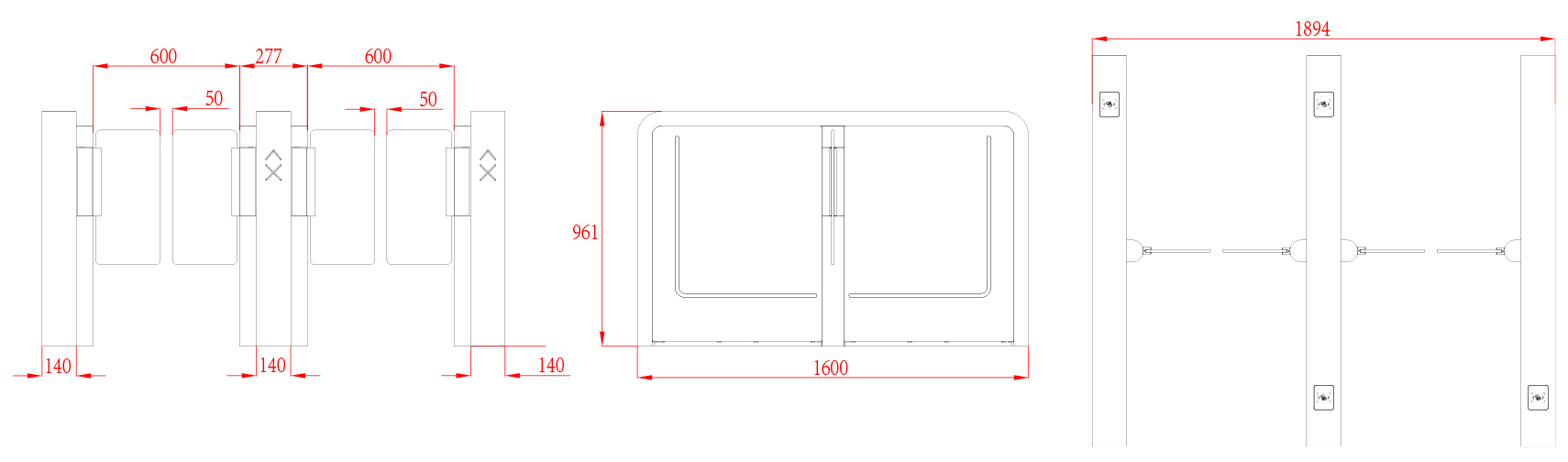

Dimension | ||
| ||

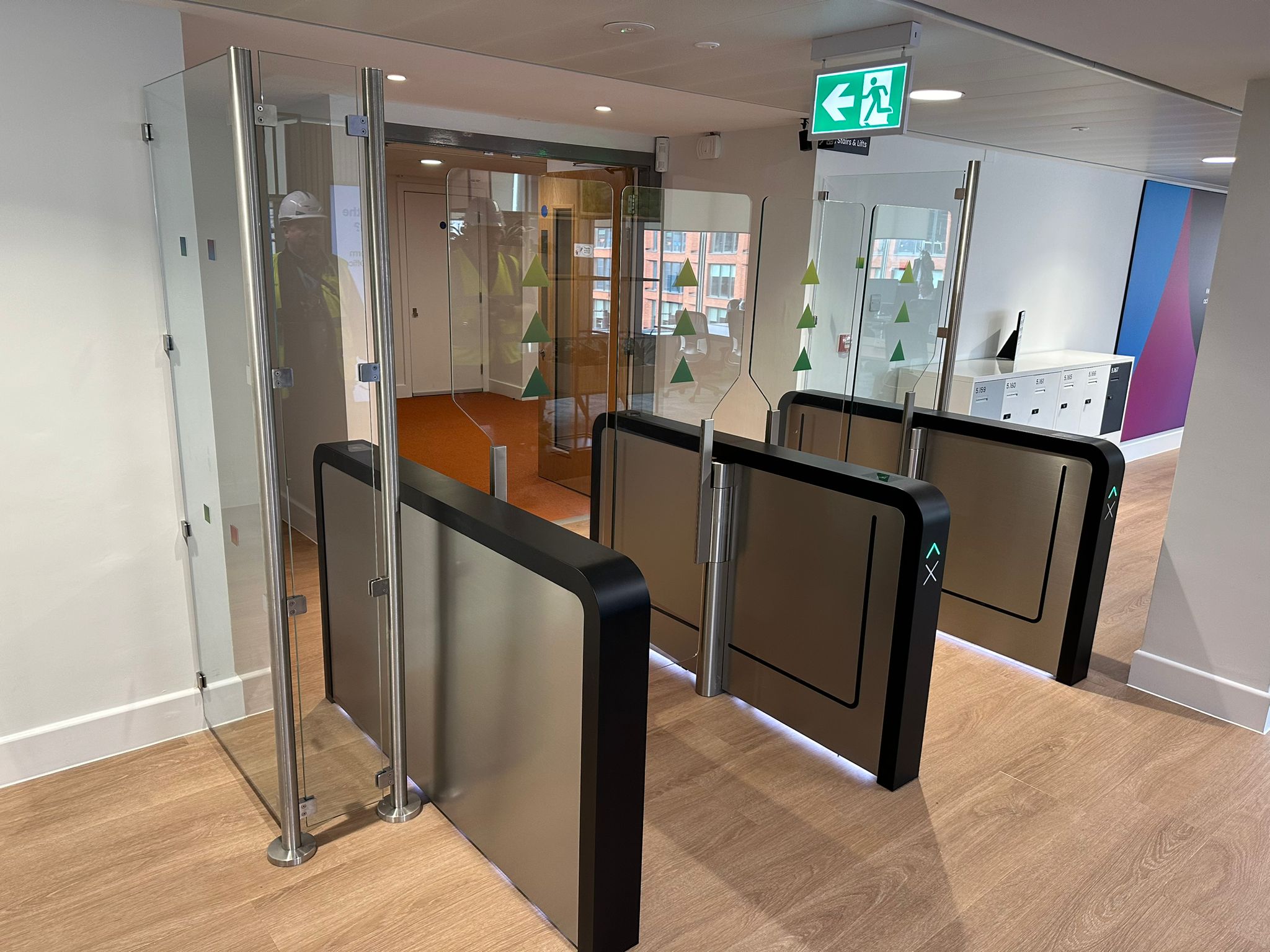

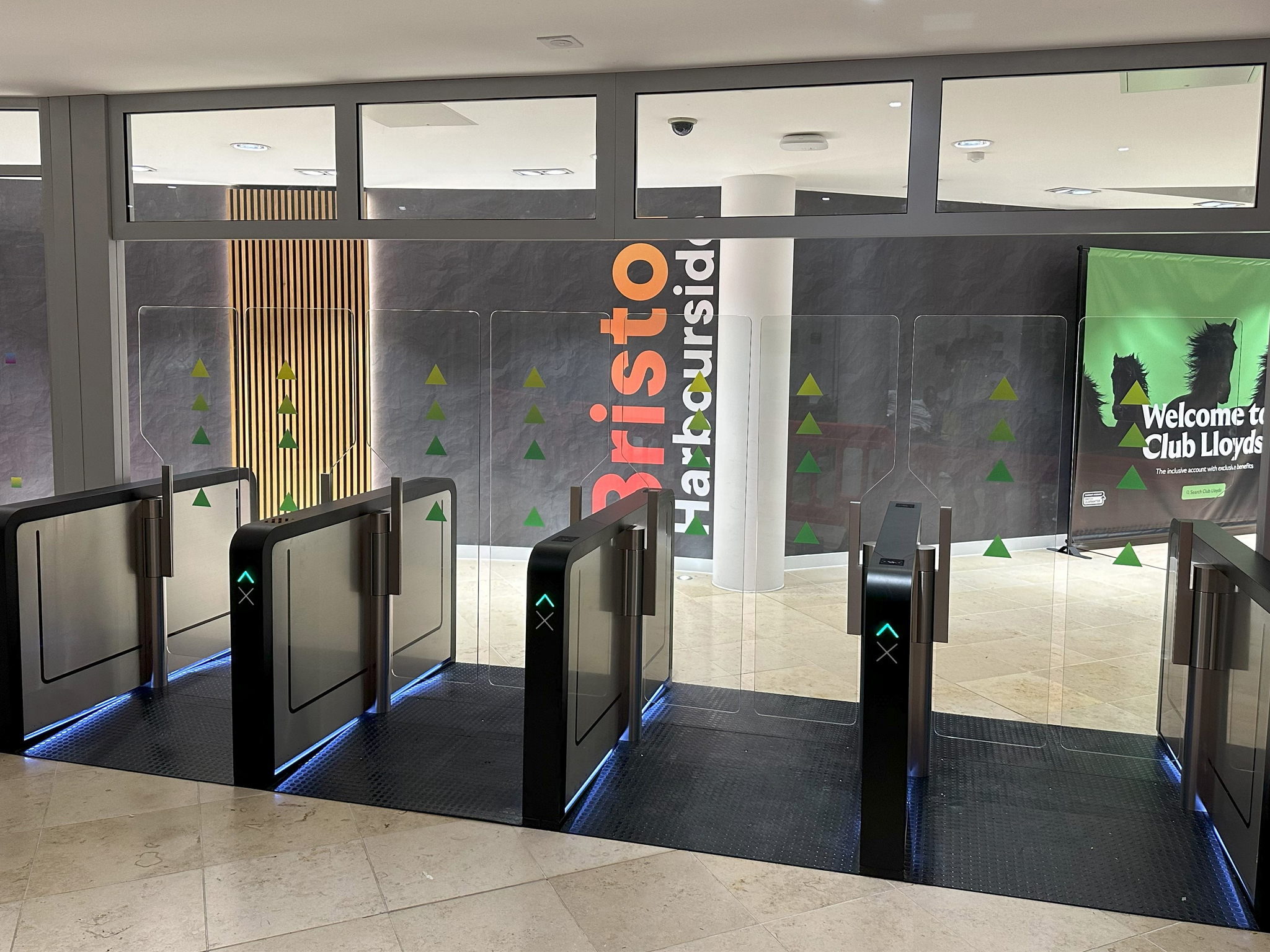

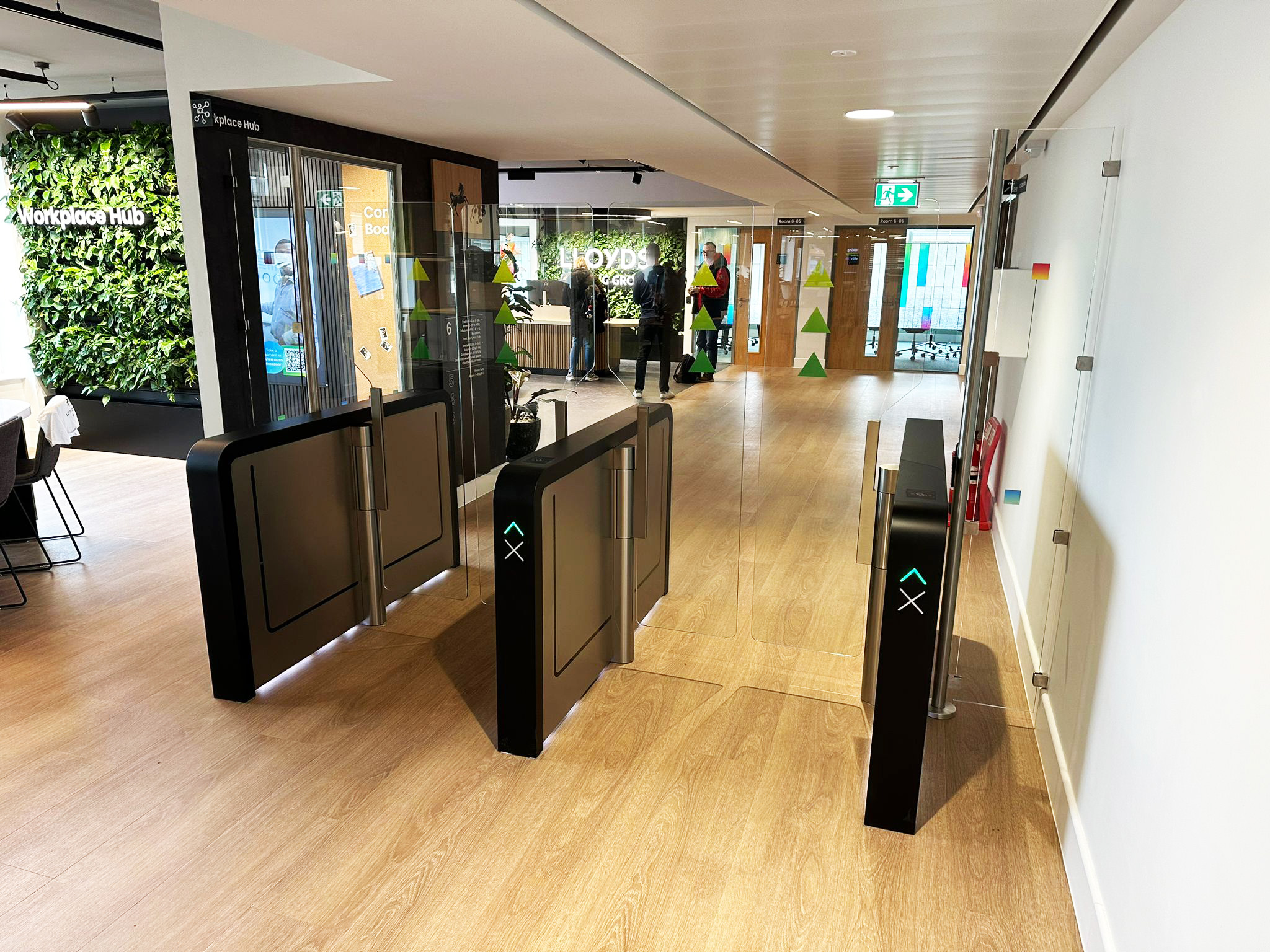

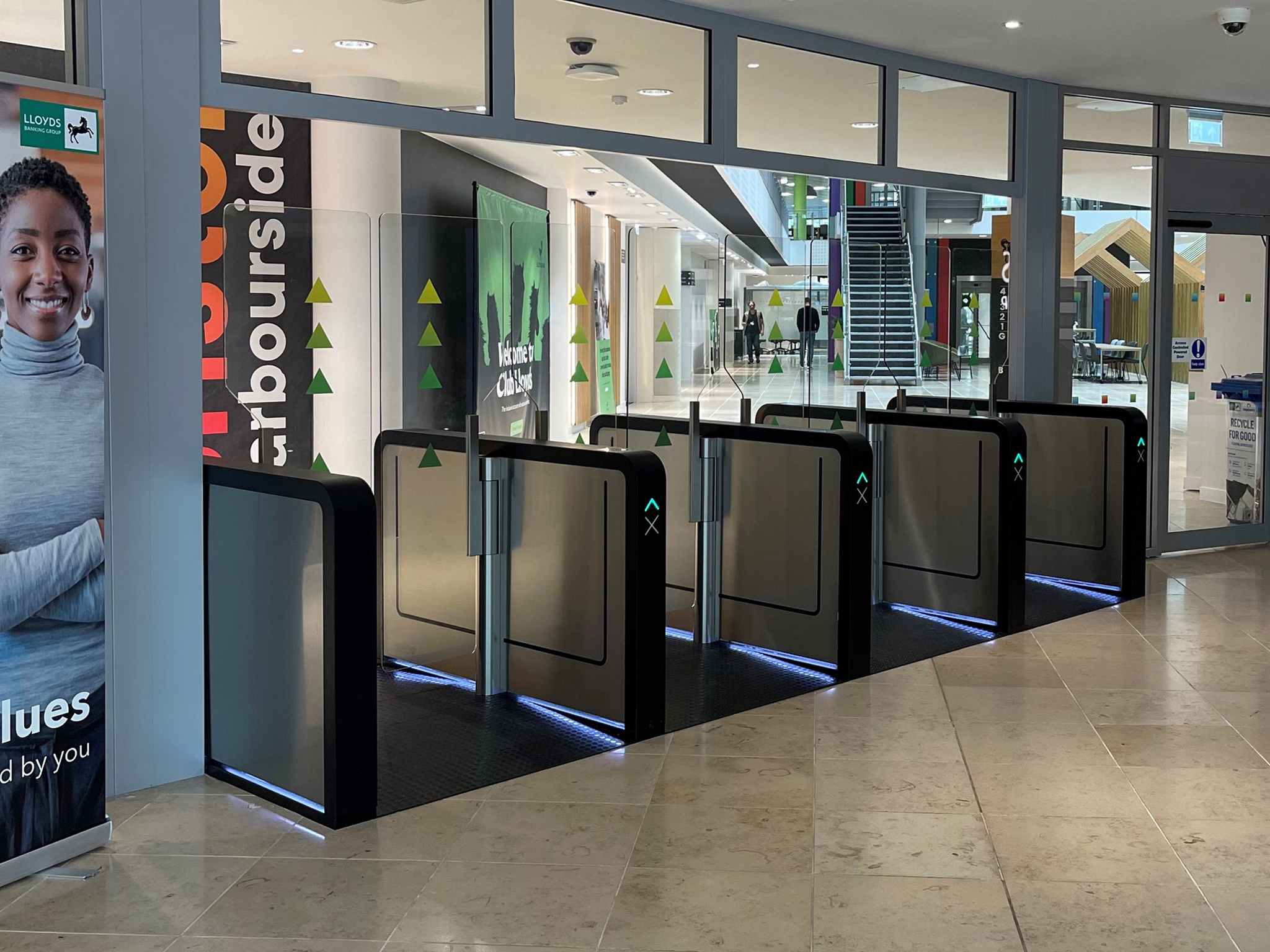

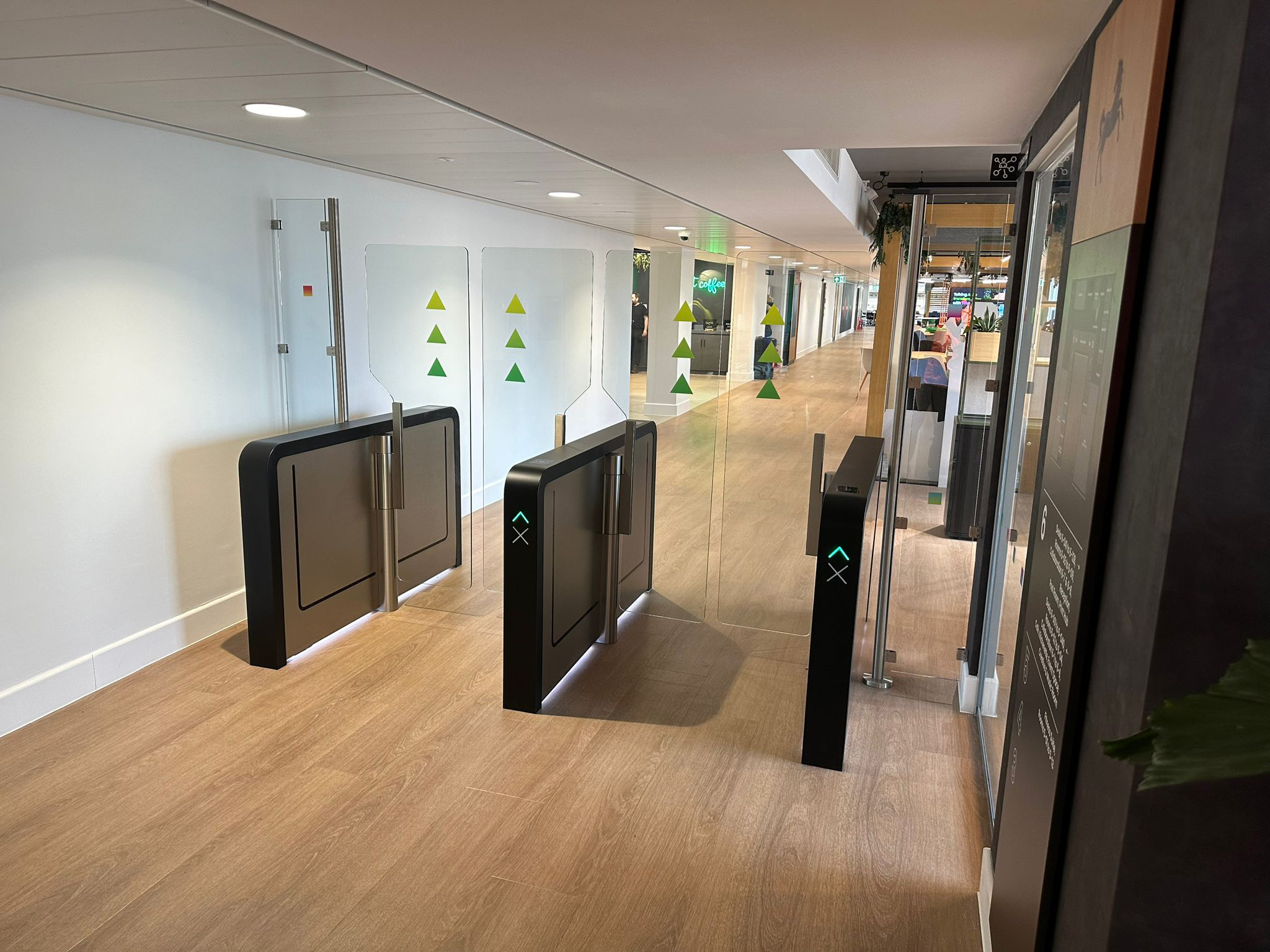

Bristol UK
Bristol UK
Bristol UK
Bristol UK
Bristol UK

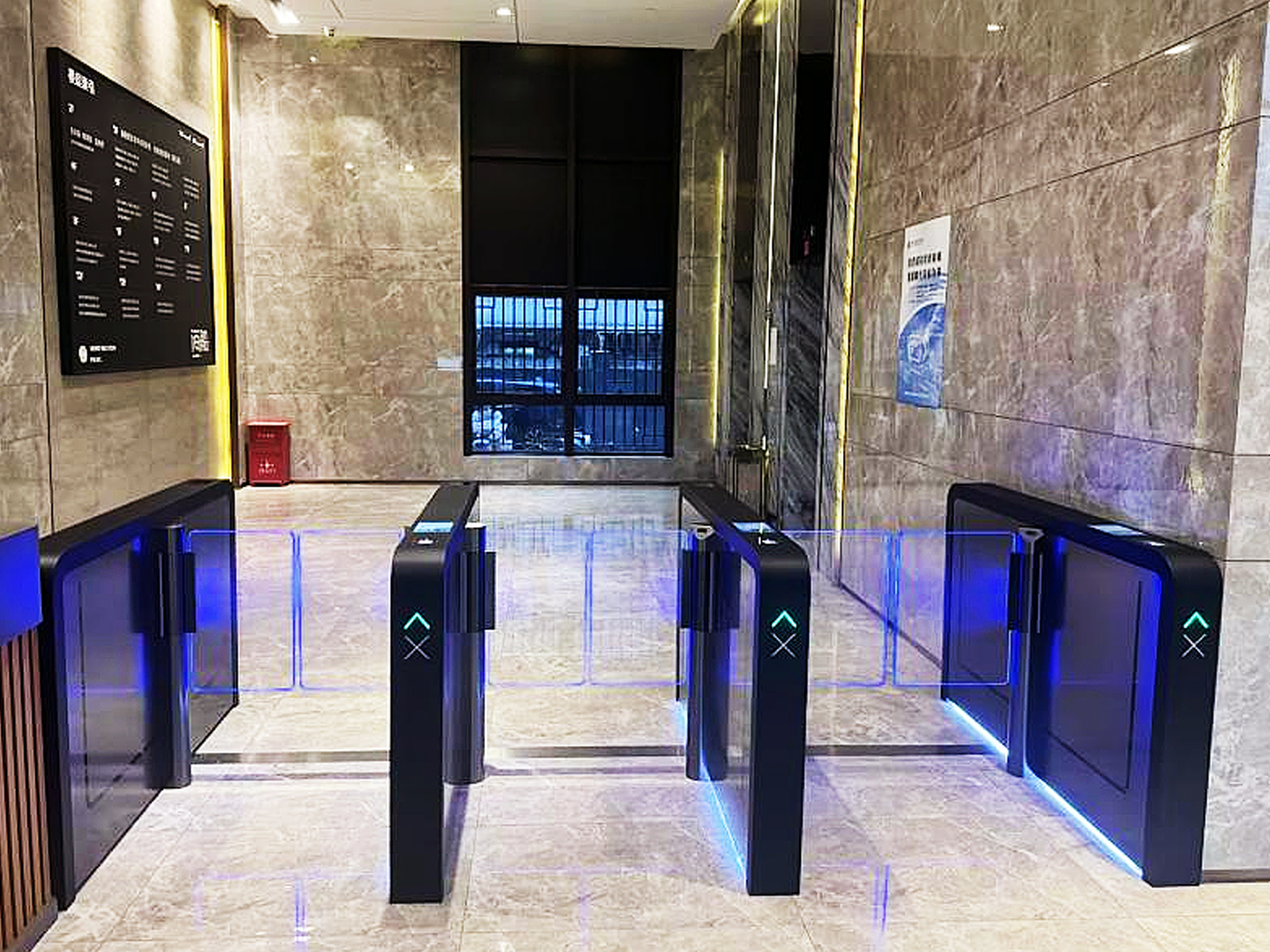

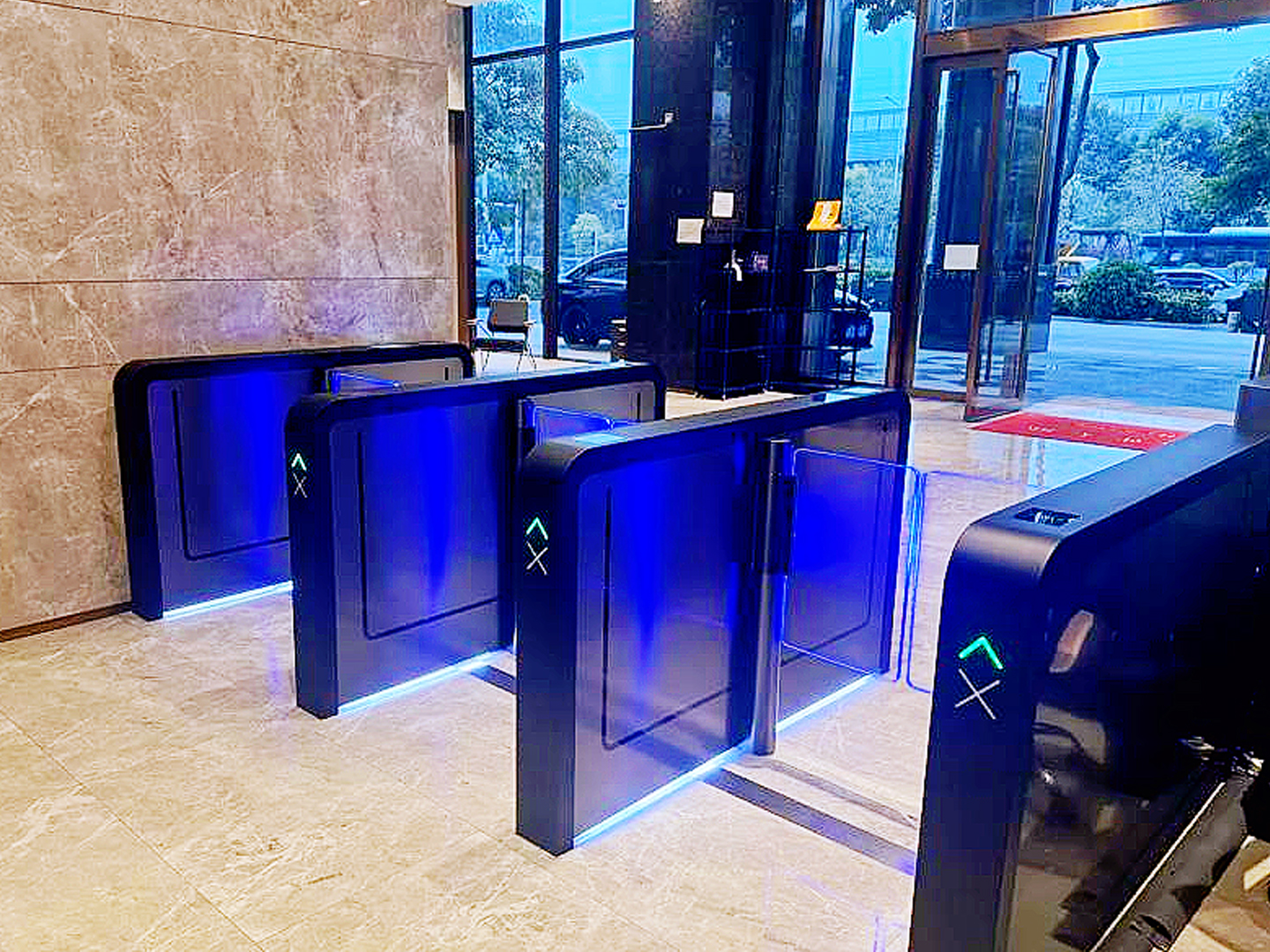

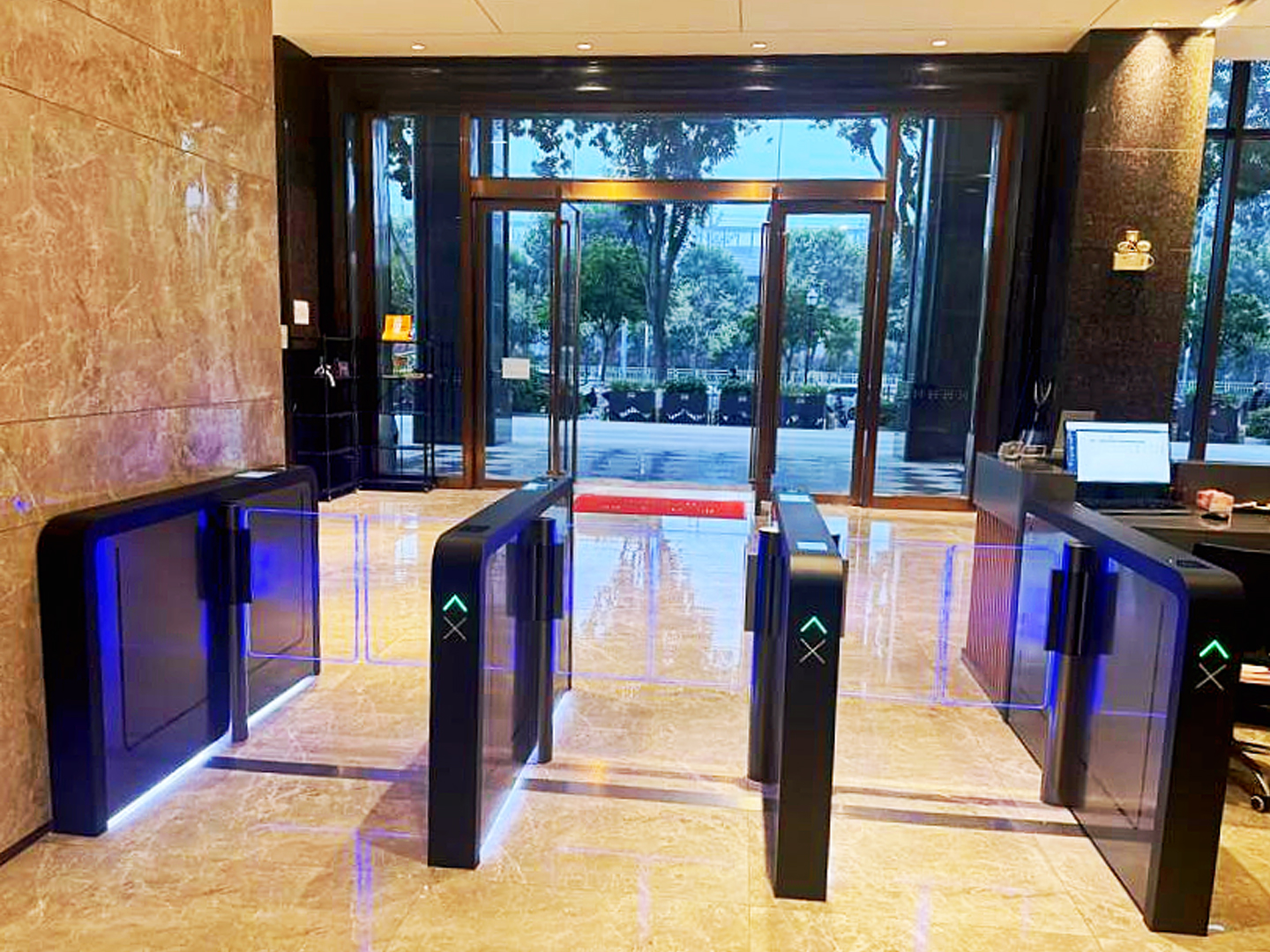

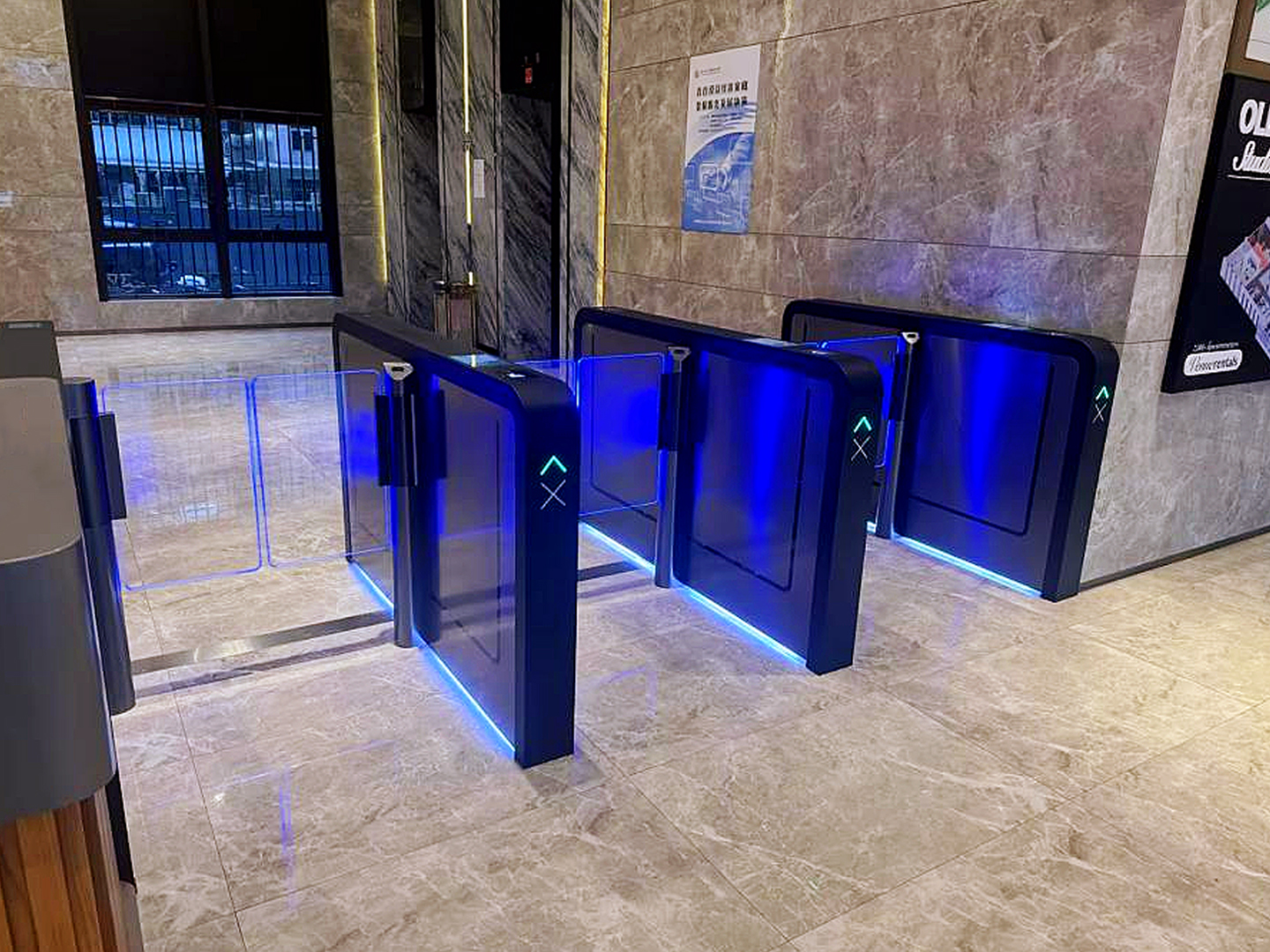

In Mansion
In Mansion
In Mansion
In Mansion
