DR.TD.6383
Star product with popularity
DR.TD.6383 achieves a integration of high-precision SUS 304 stainless steel for cabinet case, new generation of BLDC motor and encoder for operation and industrial-grade 32 bit ARM processor for control. The modular design makes the equipment easy installation, disassembly and maintenance. Various access modes offers a more rapid, dynamic and convenient passing method for pedestrian flow at intensive sites.
Get A Free Quote
| TRIPOD TURNSTILE DR.TD.6383 | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Tripod Arm Material | SUS304 Stainless Steel | |
Product Dimension | L1600*W280*H1000mm | |
Electric Para. | Power Supply | AC110V/220±10%V, 50±10%Hz |
Drive Unit | Brushless Motor DC 24V | |
Comm. Protocol | Level Type/Pulse/RS485/RS232 | |
Input Interface | Dry Contact | |
Passing Info. | Passage Indicator | Red/Green indicator |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | ≤550mm | |
Passing Speed | 30-35 people/min (IC card) | |
Performance | Gate Open Speed | Fastest 0.3s |
Positioning Method | Motor+Clutch+Encoder | |
Extras | Working Environment | Indoor/Outdoor, -15℃~60℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 5 Million Times | |
Noise | ＜50dB | |
IP Level | IP42 | |

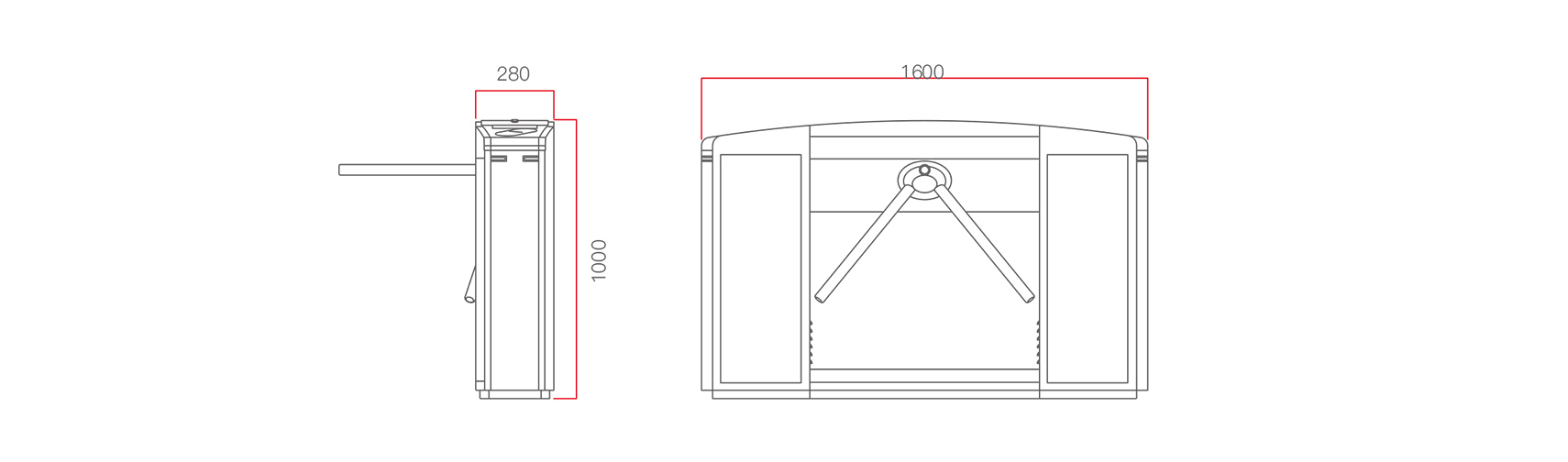

Dimension | ||
| ||
