DR.TD.6371X

Star product with popularity

DR.TD.6371X is the most popular turnstile model with compact cost-effective design and reliability. Through various read & write devices configured, it makes the control and management of entrance and exit passage more intelligent and convenient. In an emergency, tripod turnstile arm will drop off automatically with power off to facilitate people evacuation. It solves and improves the intensive queue and makes pedestrian flow effortless.

Get A Free Quote

Facebook lingying Youtube

TRIPOD TURNSTILE DR.TD.6371X

Physical Para.

Cabinet Material

SUS304 Stainless Steel

Tripod Arm Material

SUS304 Stainless Steel

Product Dimension

L1200*W280*H1000mm

Electric Para.

Power Supply

AC110V/220±10%V, 50±10%Hz

Drive Unit

Solenoid Valve

Comm. Protocol

RS485

Input Interface

Dry Contact

Passing Info.

Passage Indicator

Red/Green indicator

Passing Direction

Uni-directional/Bi-directional

Passage Width

≤600mm

Passing Speed

20 people/min (IC card)

Performance

Gate Open Speed

Fastest 1.5s

Remote Distance

1200m

Extras

Working Environment

Indoor/Outdoor, -15℃~60℃

Relative Humidity

≤90%, No Condensation

MCBF

3 Million Times

Noise

<50dB

IP Level

IP54

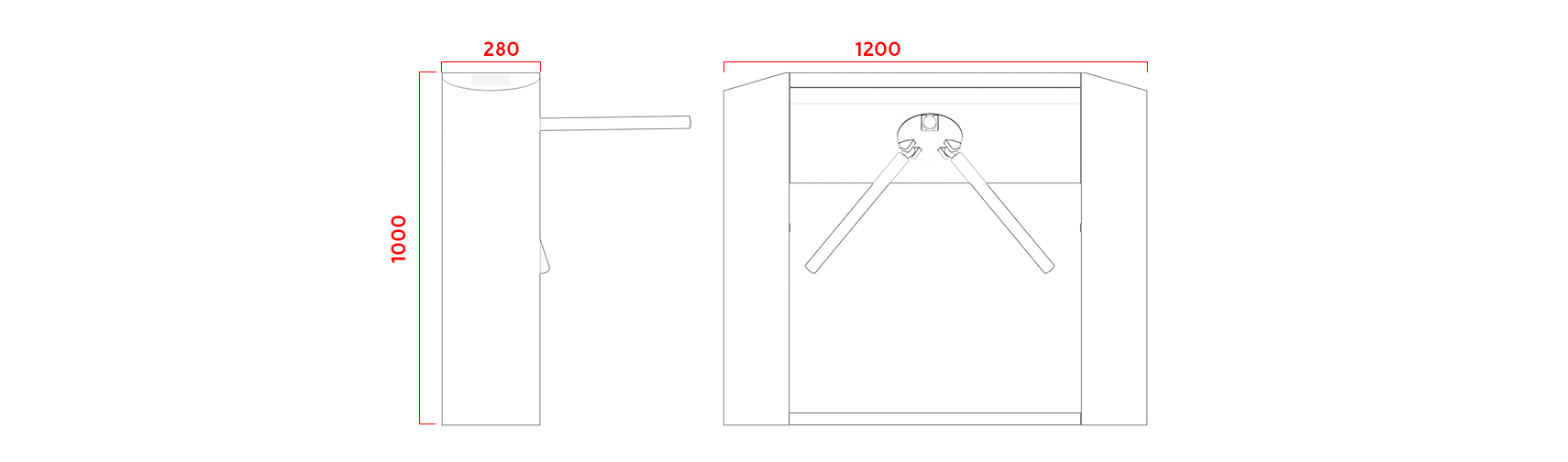

Dimension
