DR.TD.6771A-1

Star product with popularity

DR.TD.6771A-1 Full Height Turnstile, i.e cross turnstile, effectively prevents climbing and crossing suitable for more strict sites or surroundings with unattended operation or no security patrol. The cabinet case adopts CNC stainless steel modular design, elegant appearance, rust-resistance and durable. The system is configured with standard electrical interfaces integrating IC card, ID card, bar-code card, fingerprint verification, facial recognition and more identification device to realize intelligent and high-efficient entrance and exit passage management. It provides a safe and orderly passing way and prevent unauthorized people to enter and exit freely.

Get A Free Quote

Facebook lingying Youtube

FULL HEIGHT TURNSTILE DR.TD.6771A-1

Physical Para.

Cabinet Material

SUS304 Stainless Steel

Tripod Arm Material

SUS304 Stainless Steel

Product Dimension

L1580*W1180*H2310mm

Electric Para.

Power Supply

AC110V/220±10%V, 50±10%Hz

Drive Unit

Solenoid Valve

Comm. Protocol

RS485

Input Interface

Dry Contact

Passing Info.

Passage Indicator

Red/Green indicator

Passing Direction

Uni-directional/Bi-directional

Passage Width

≤600mm

Passing Speed

20 people/min

Performance

Turnstile Arm Angle

90° or 120°

Remote Distance

≤1200m

Extras

Working Environment

Indoor/Outdoor, -15℃~60℃

Relative Humidity

≤90%, No Condensation

MCBF

5 Million Times

Noise

<50dB

IP Level

IP65

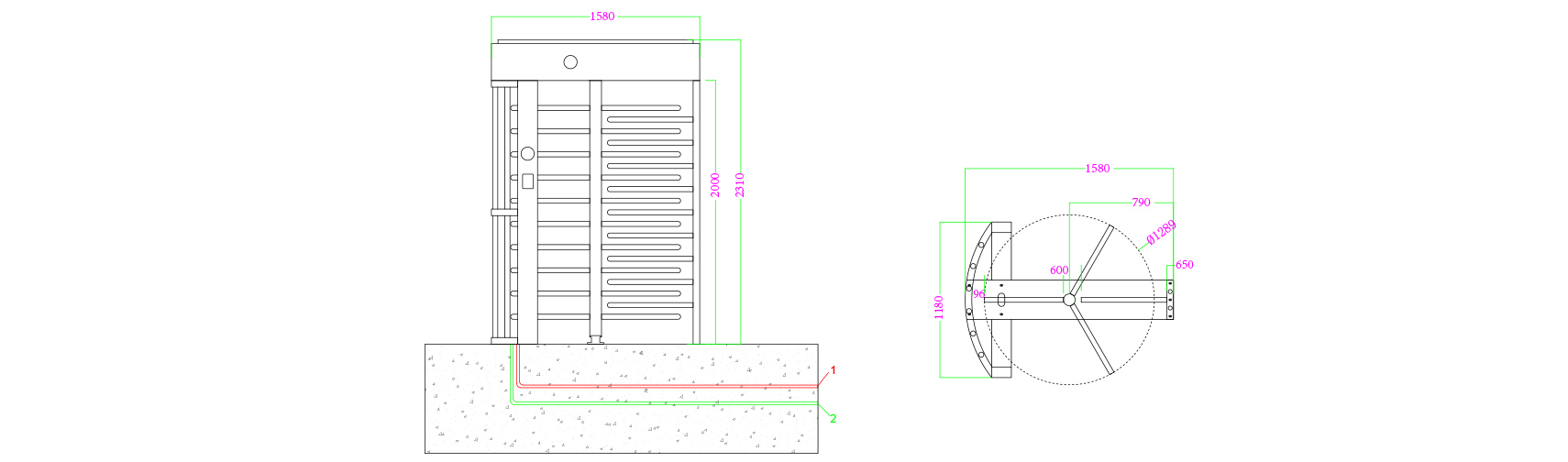

Dimension



×
