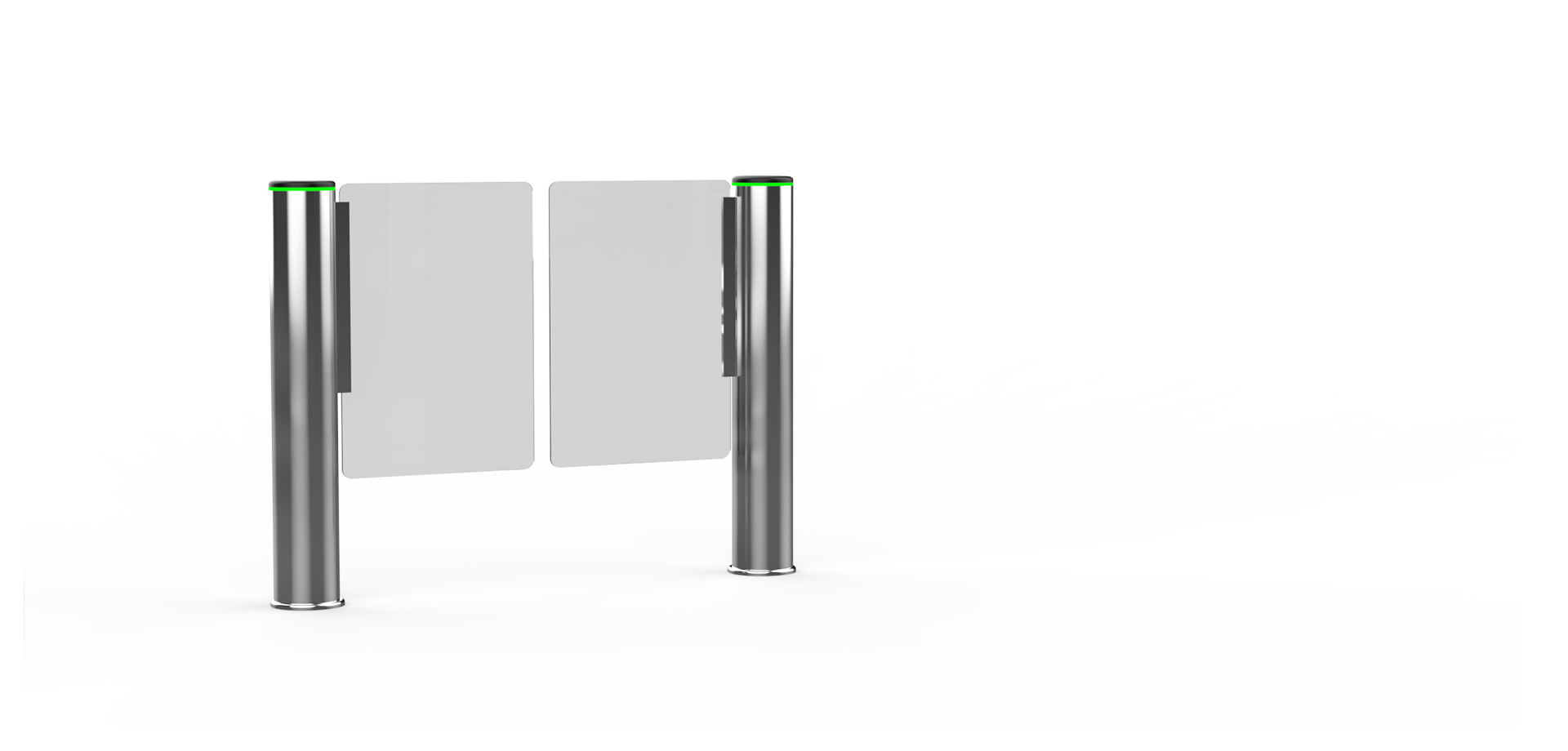

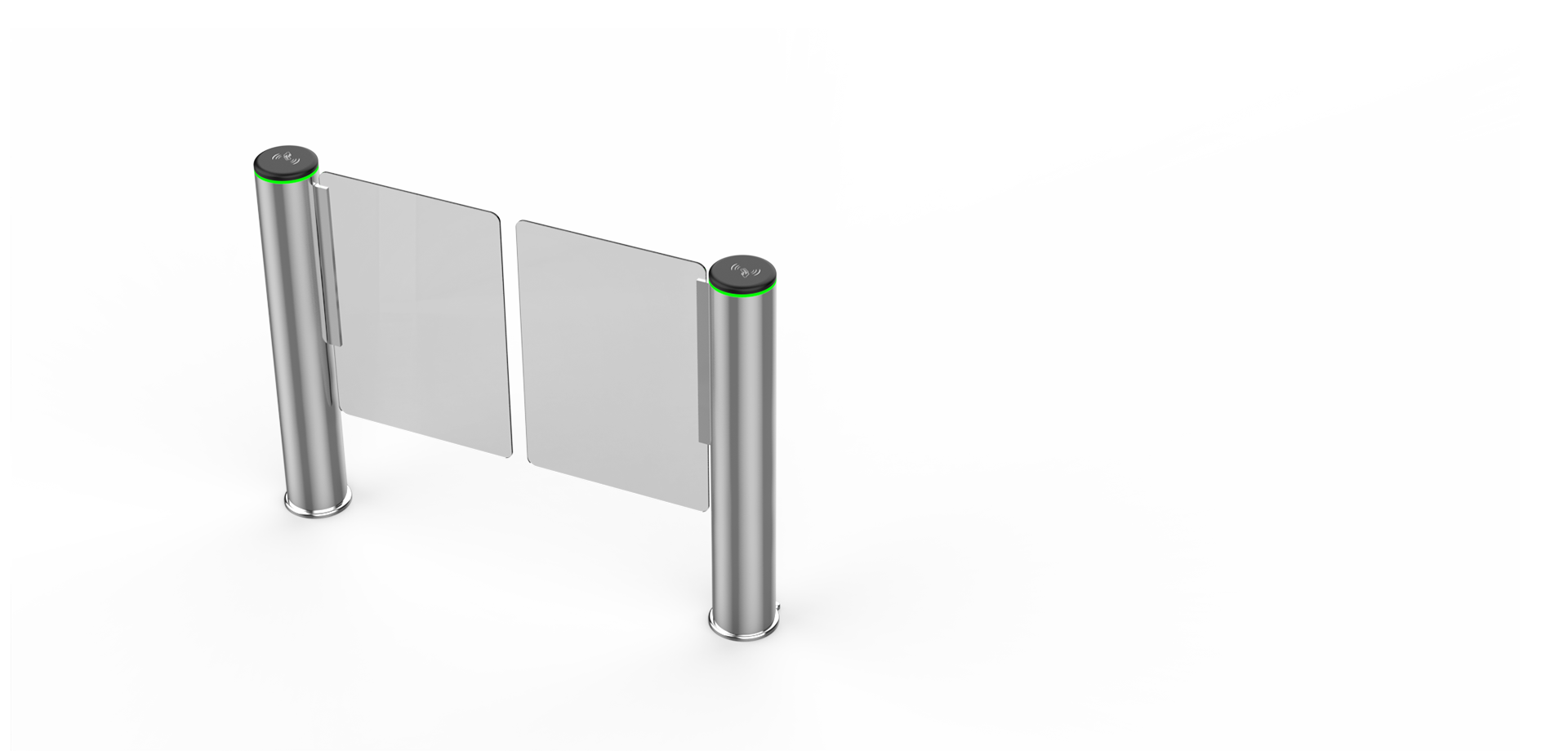

DR.TD.6670A
Star product with popularity
DR.TD.6670A has a compact and exquisite cylinder module appearance design. Integrated the advantage of fine materials, multiple optical sensors, precise drive unit & mechanism, advanced artificial intelligence algorithm & security technology etc, it creates more options and possibilities for life.
Get A Free Quote
| SWING GATE DR.TD.6670A | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Swing Panel Material | PMMA Acrylics/Plexiglass | |
Product Dimension | φ141*1000mm | |
Electric Para. | Power Supply | AC220±10%V, 50±10%Hz |
Drive Motor | DC24V Servo Motor | |
Power | 200W | |
Comm. Protocol | RS485 | |
Input Interface | Relay(Dry Contact) | |
Passing Info. | Passage Indicator | Red/Green indicator |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | 600~900mm | |
Passing Speed | 35~50 people/min | |
Performance | Gate Open Speed | Fastest 0.3s, adjustable |
Gate Open Angle | 90°±5° | |
Positioning Method | Servo Motor+Clutch+Encoder | |
Extras | Working Environment | Indoor, -25℃~70℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 20 Million Times Certified | |
Noise | ＜50dB | |
IP Level | IP42 | |

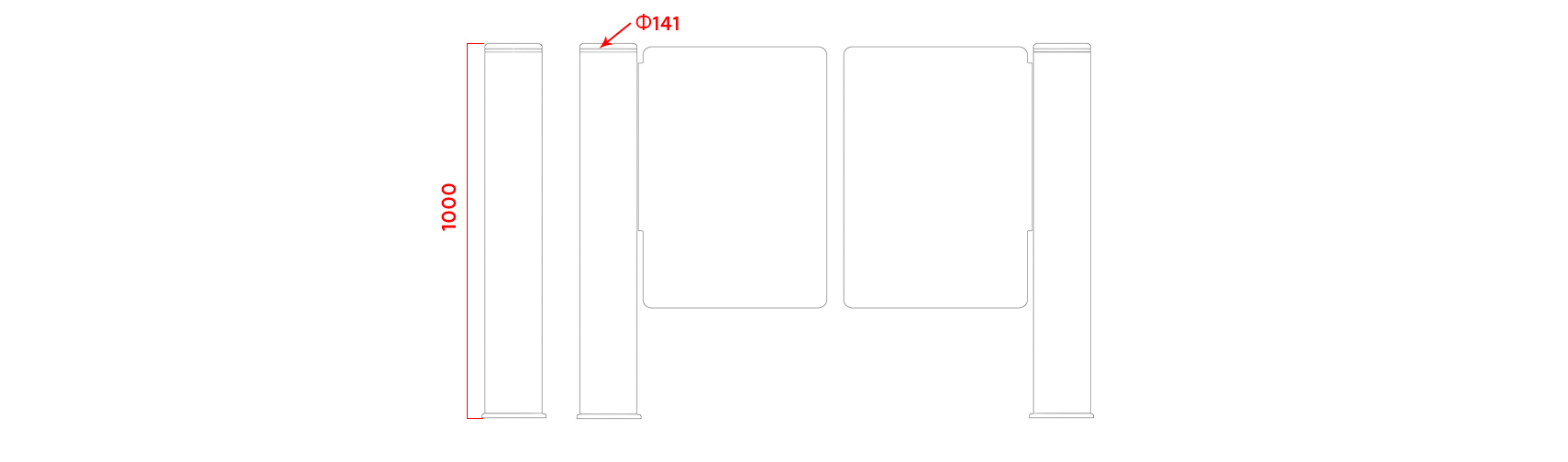

Dimension | ||
| ||
