DR.TD.6621B
Star product with popularity

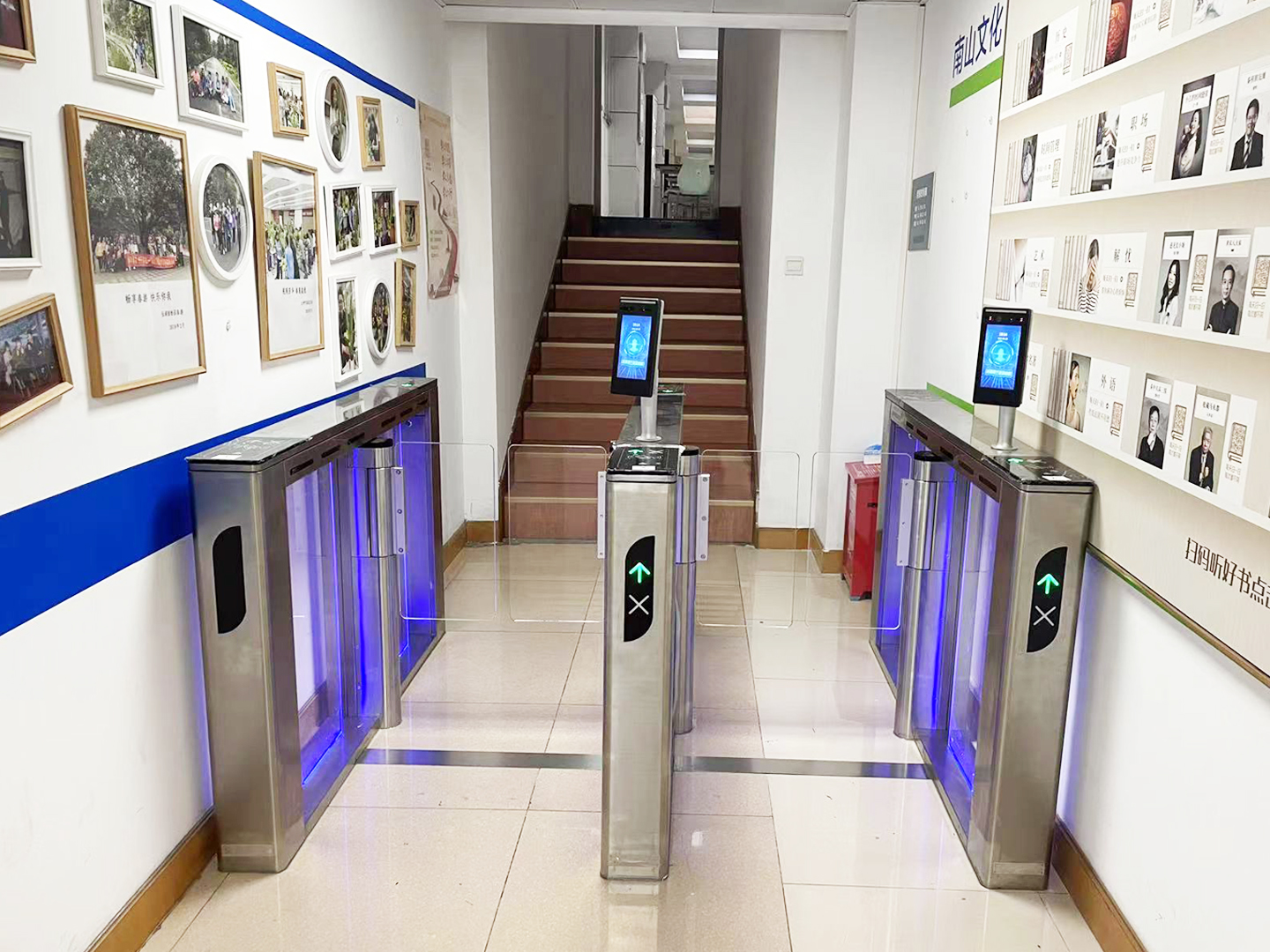

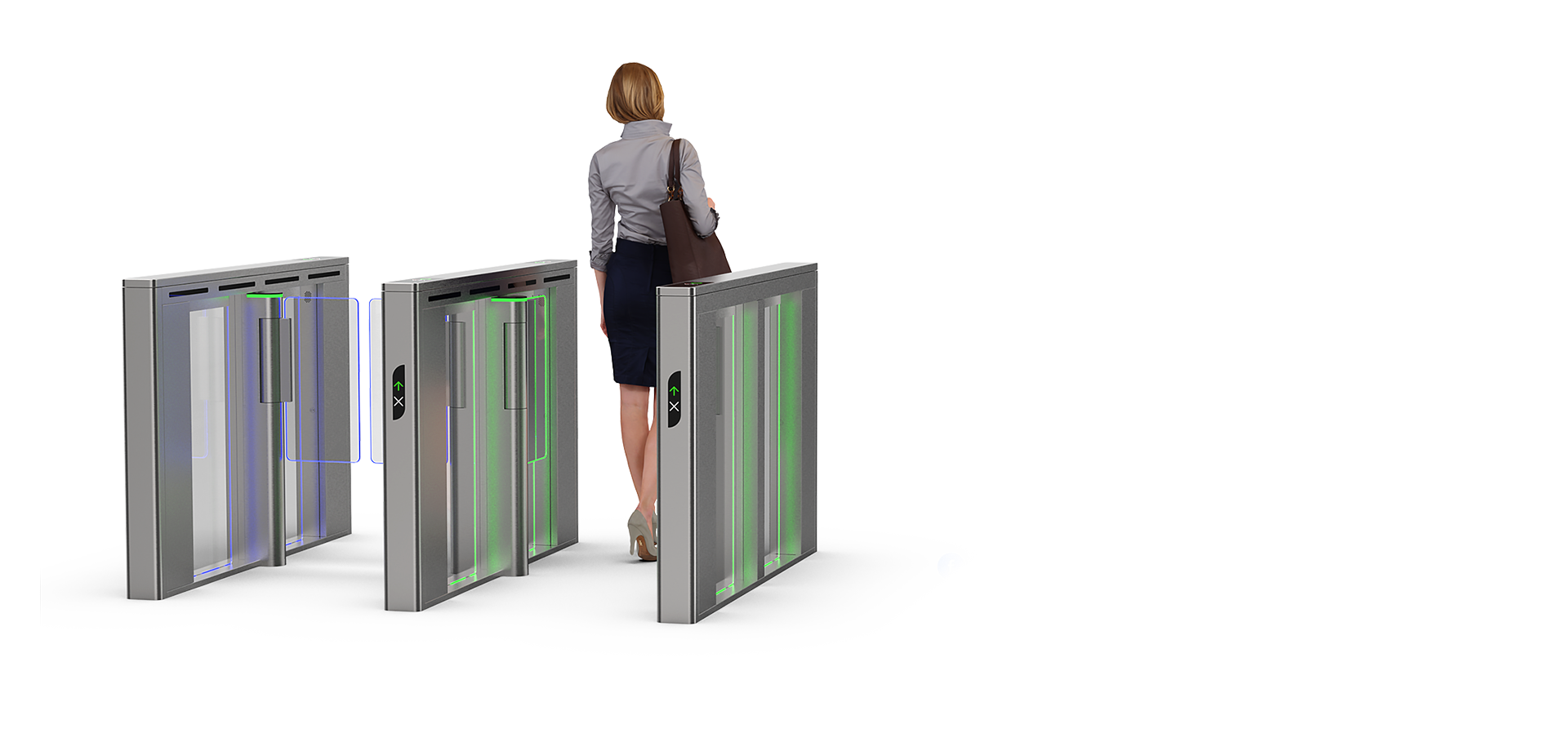

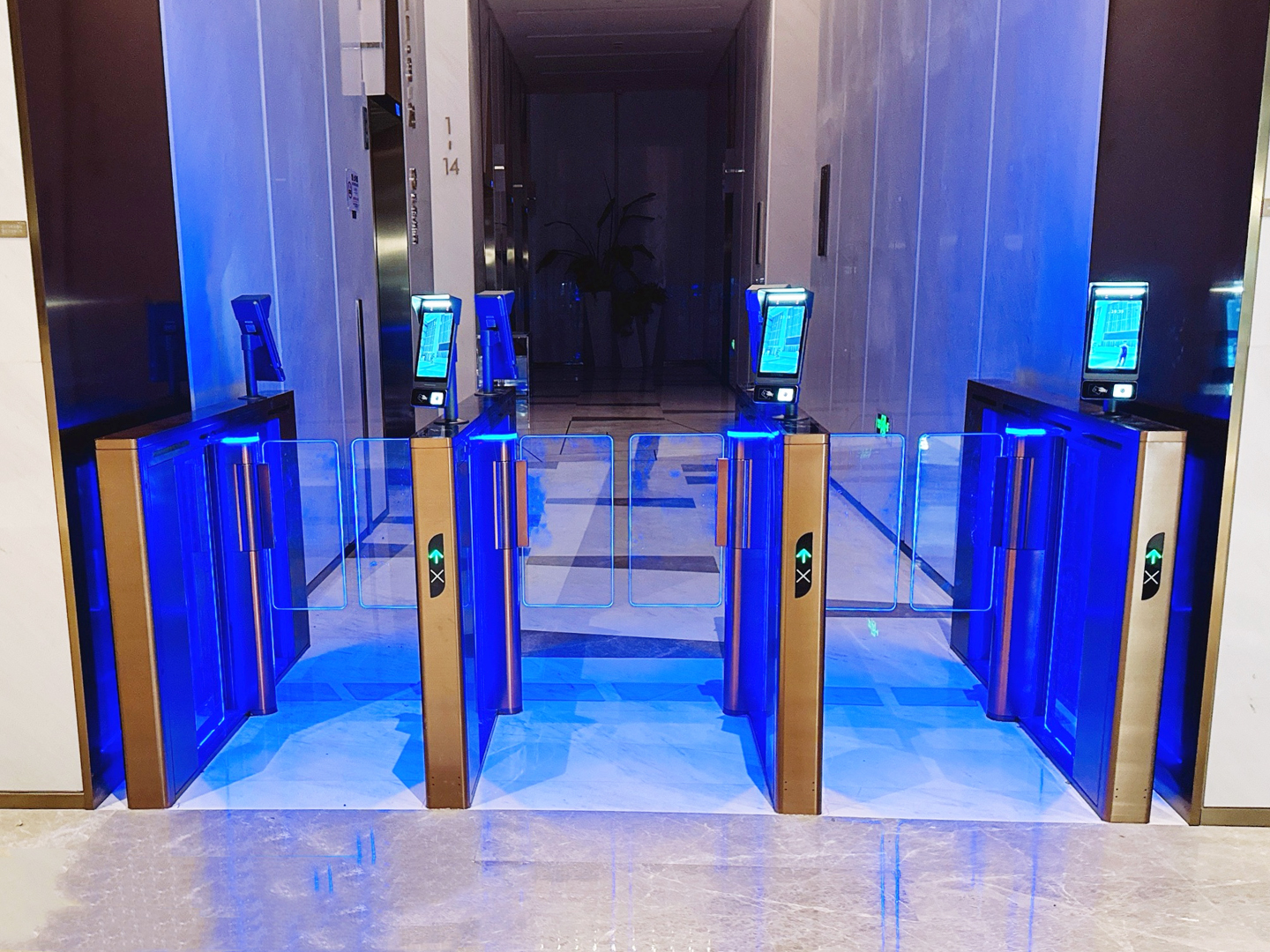

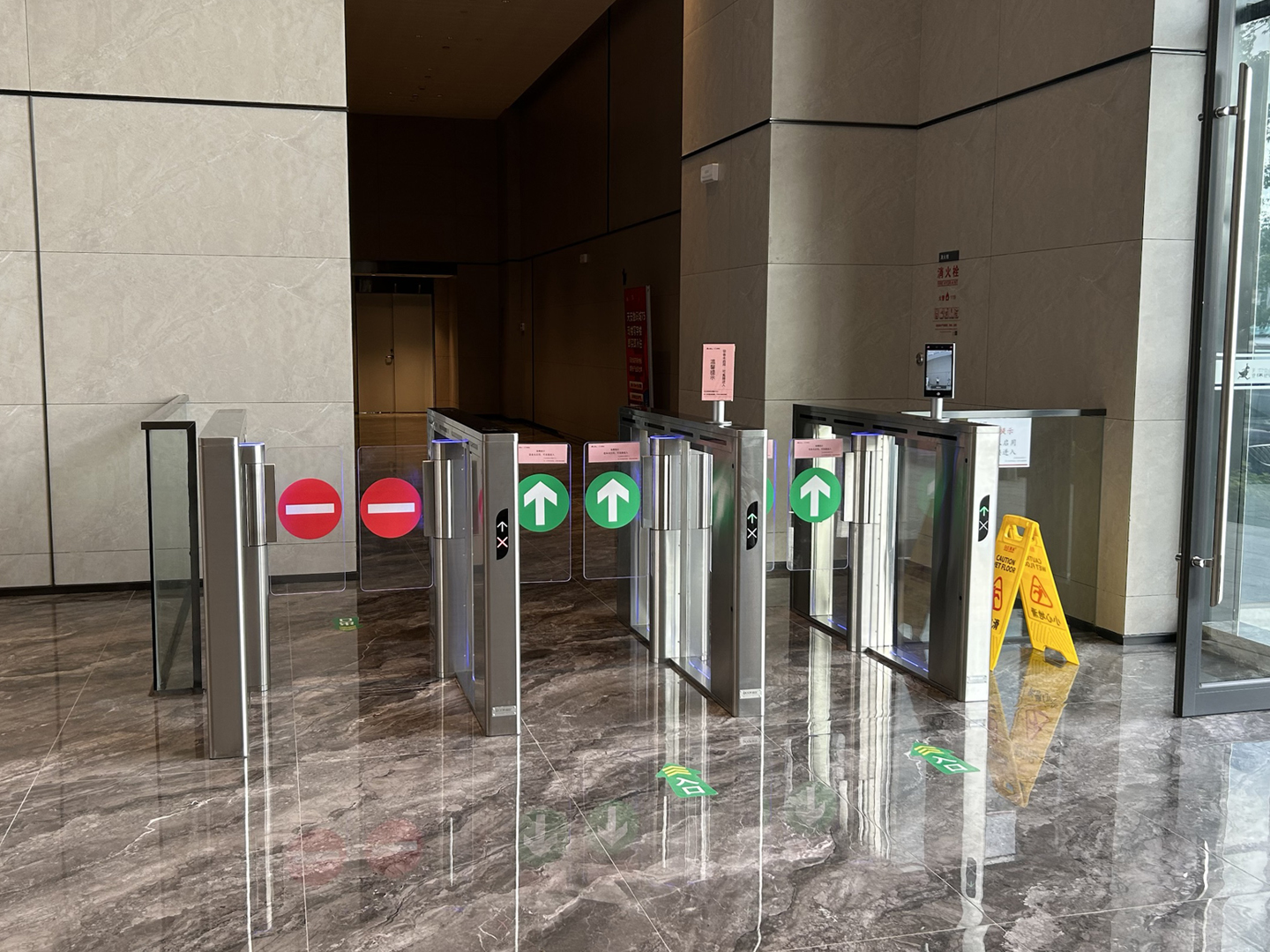

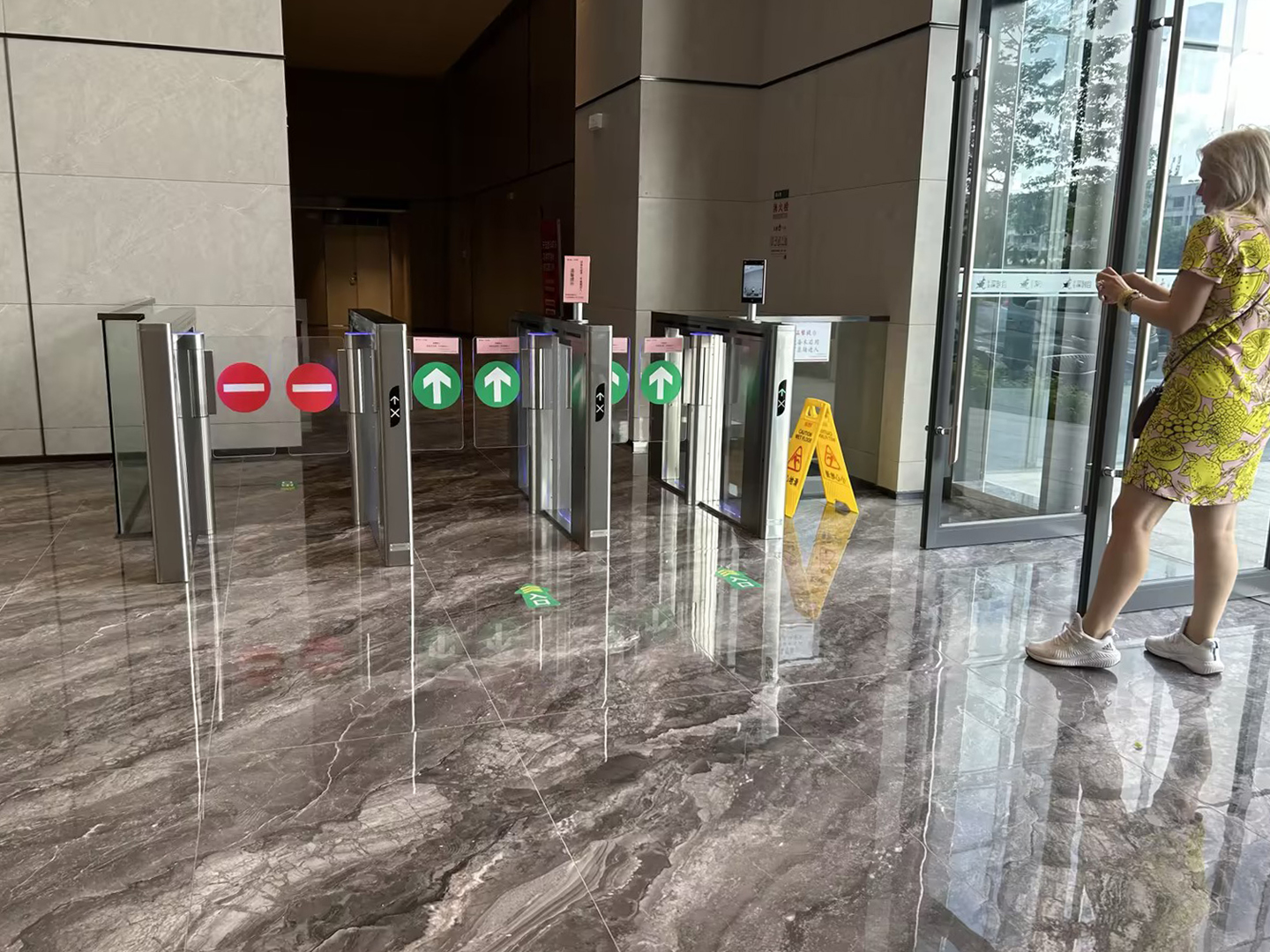

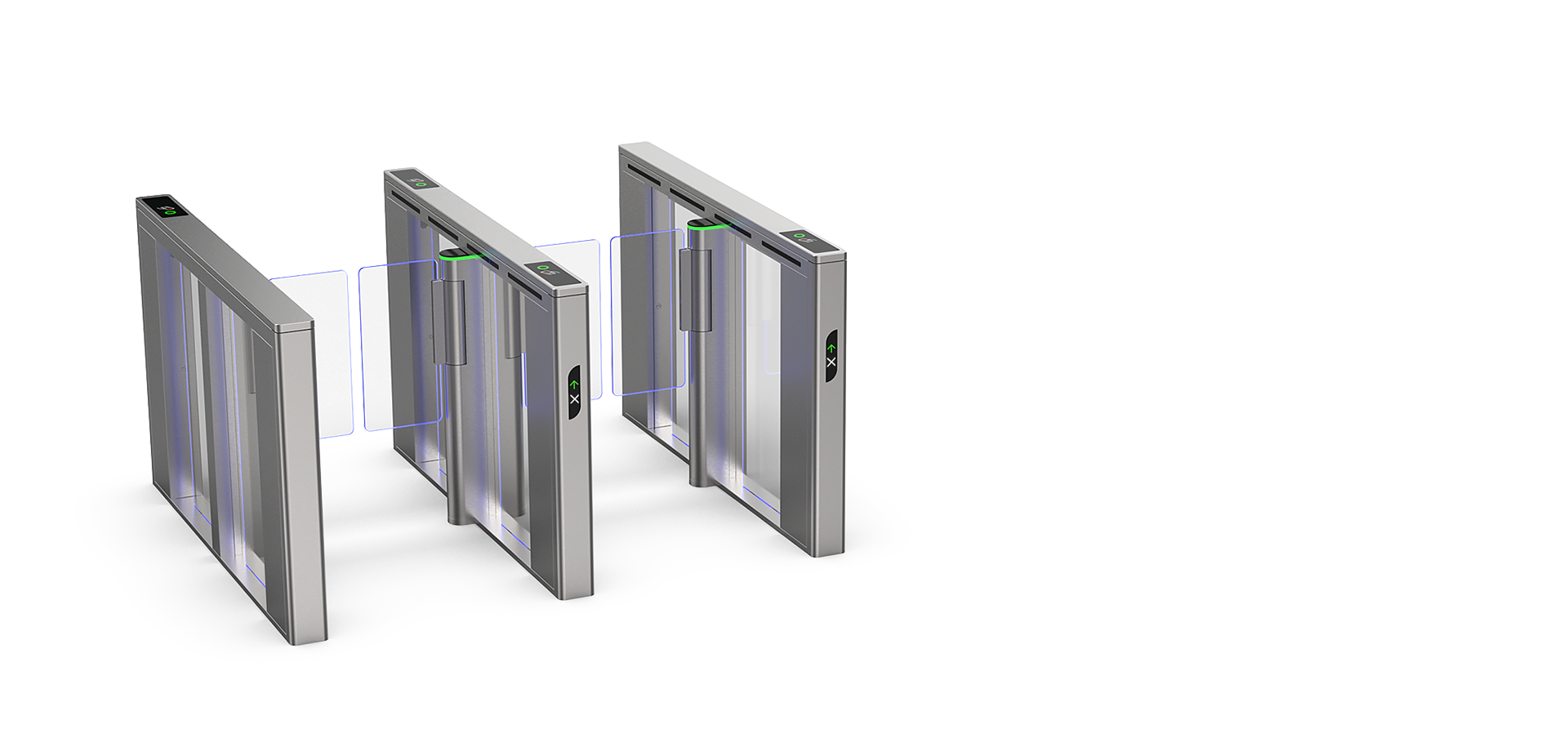

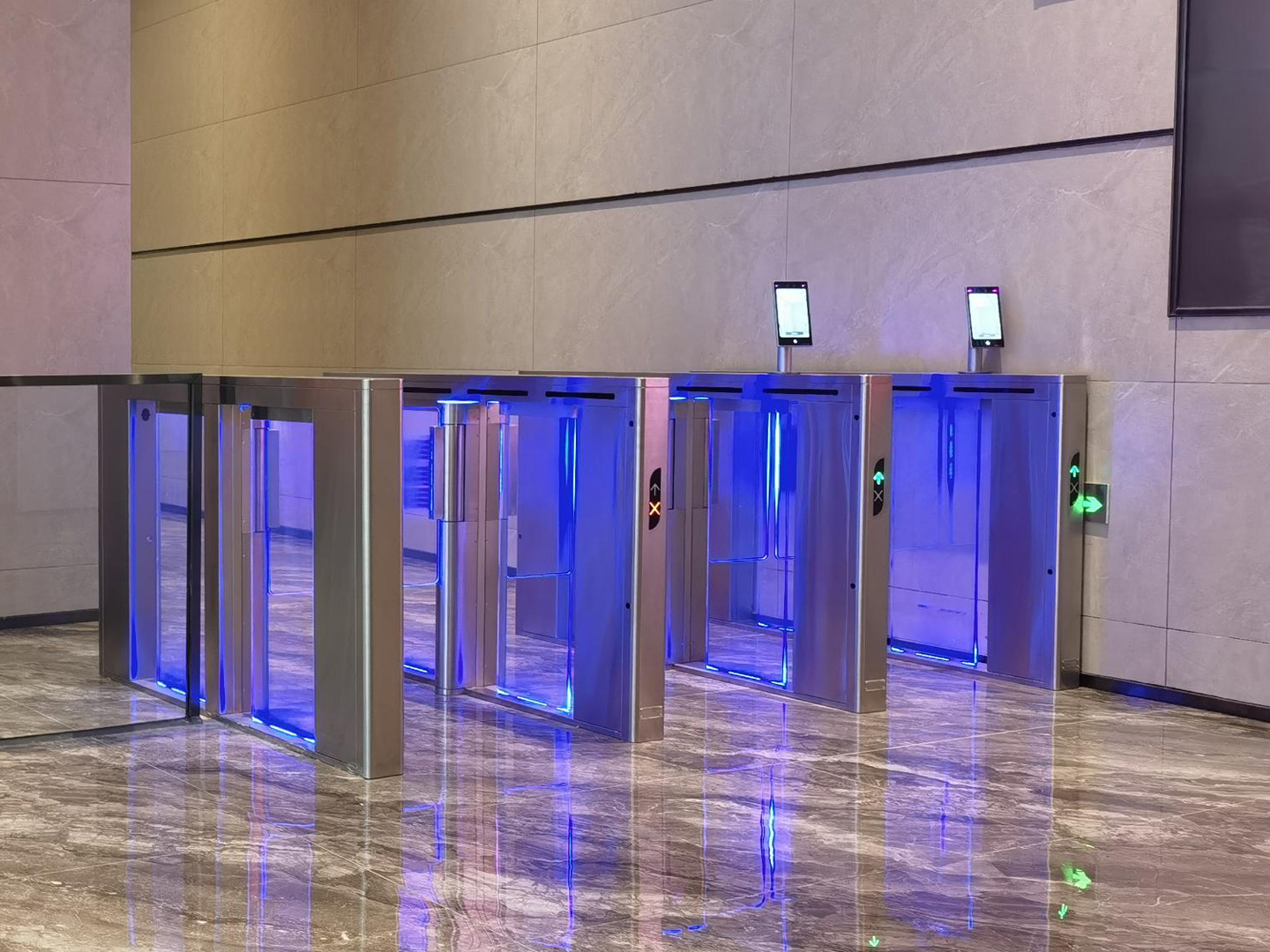

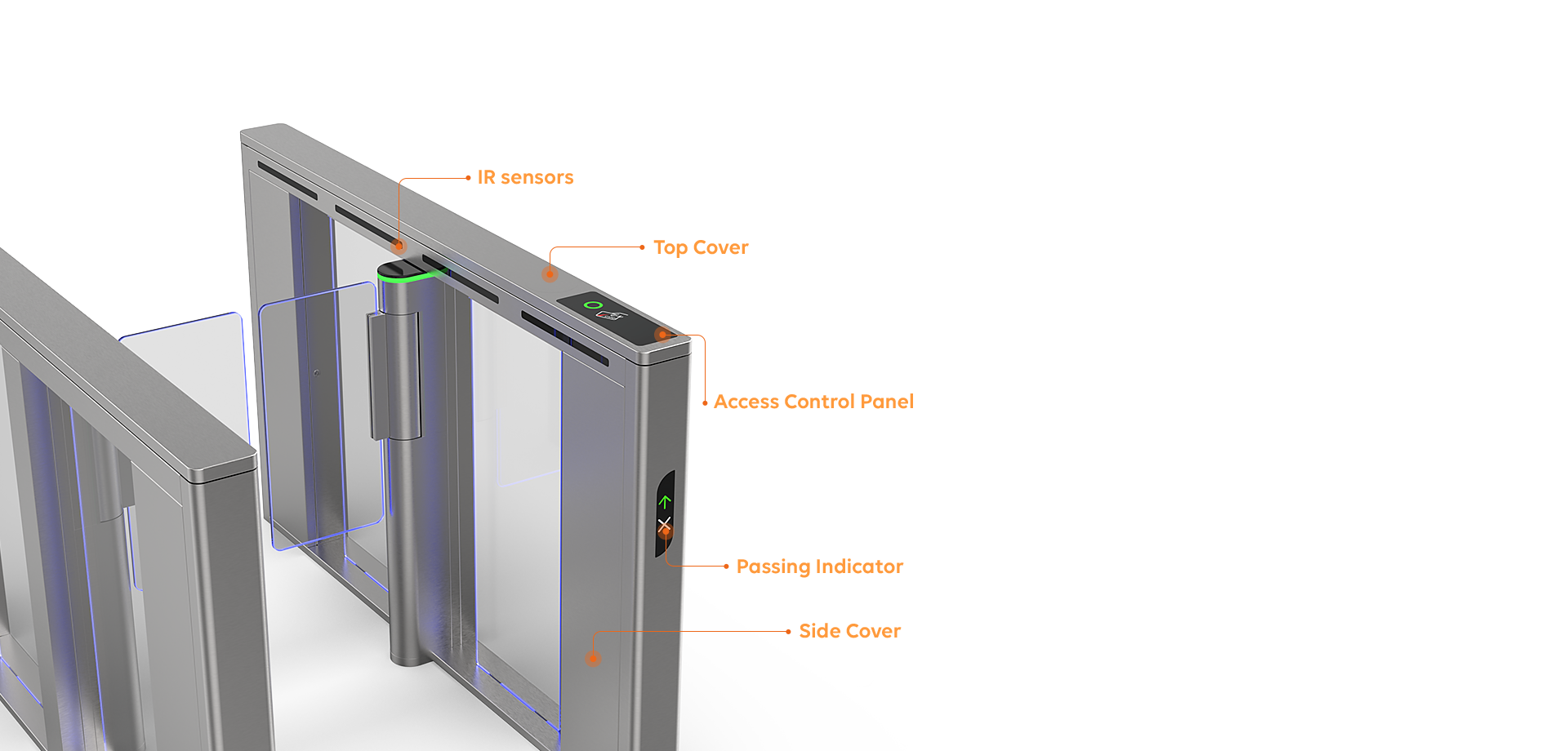

DR.TD.6621B brings a combination of integrated stainless steel cabinet case and transparent swing panel&clapboard. Due to precise Servo drive unit and AI algorithm, a range of passage width can be optional to match different requirements at Entry/Exit area. Configured multiple optical sensors and adopted advanced anti-tailgating security technology, it realizes the modern, dynamic and convenient contact-less access control secure way in sites of intensive pedestrian flow.
Get A Free Quote
SPEED GATE DR.TD.6621B | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Swing Panel Material | PMMA Acrylics/Plexiglass (Tempered Glass for Optional) | |
Product Dimension | L1600*W120*H1000 mm | |
IR Sensor | 8 pairs | |
Electric Para. | Power Supply | AC220±10%V, 50±10%Hz |
Drive Motor | DC24V Servo Motor | |
Power | 100W(left/right),200W(middle) | |
Comm. Protocol | Level Type/Pulse/RS485/RS232 | |
Input Interface | Relay(Dry Contact) | |
Passing Info. | Passage Indicator | Red/Green indicator+ Blue LED light strips |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | 600~900mm, adjustable | |
Passing Speed | 35~50 people/min | |
Performance | Gate Open Speed | Fastest 0.3s, adjustable |
Gate Open Angle | 90°±5° | |
Positioning Method | Servo Motor+Clutch+Encoder | |
Extras | Working Environment | Indoor, -25℃~70℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 20 Million Times Certified | |
Noise | ＜50dB | |
IP Level | IP42 | |

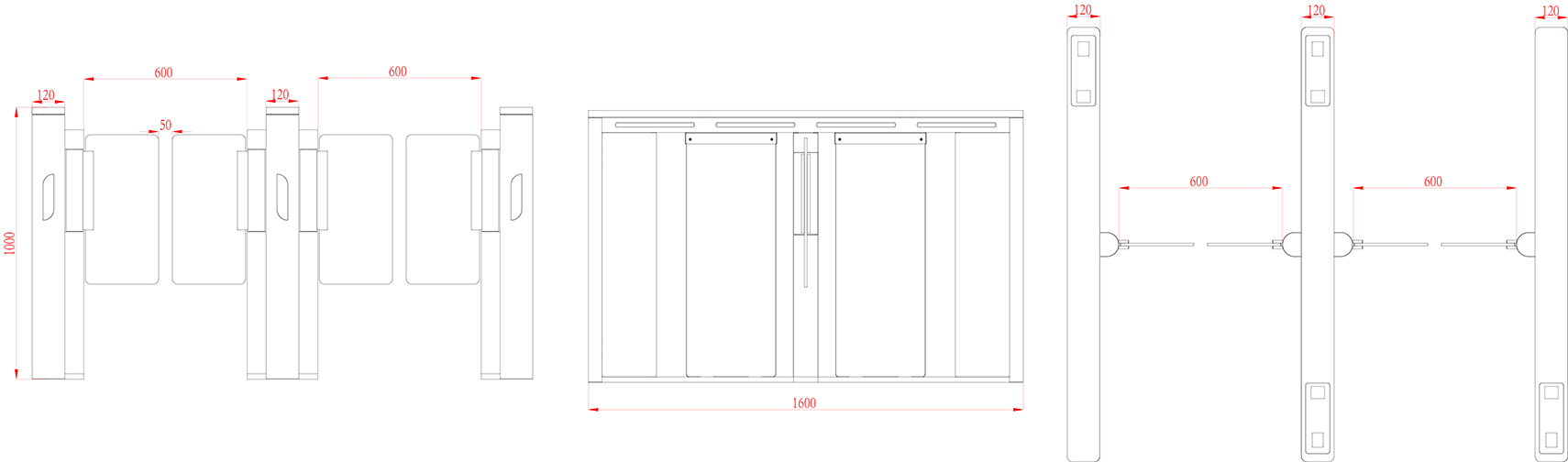

Dimension | ||
| ||
