DR.TD.6971X

Star product with popularity

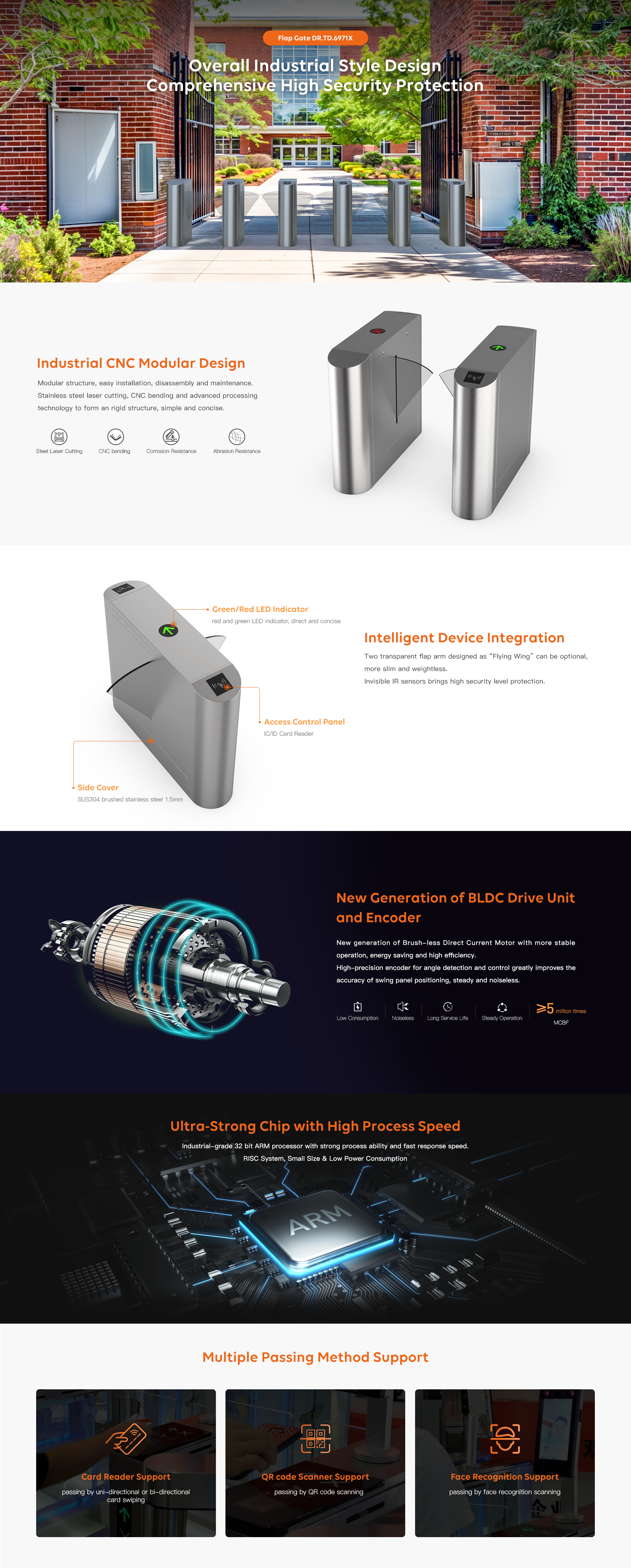

DR.TD.6971X adopts high-precision SUS 304 stainless steel for cabinet case, new generation of BLDC motor and encoder for operation and industrial-grade 32 bit ARM processor for control. The modular design makes the equipment easy installation, disassembly and maintenance. Various access modes offers a more rapid, dynamic and convenient passing method for pedestrian flow at intensive sites.

Get A Free Quote

Facebook lingying Youtube

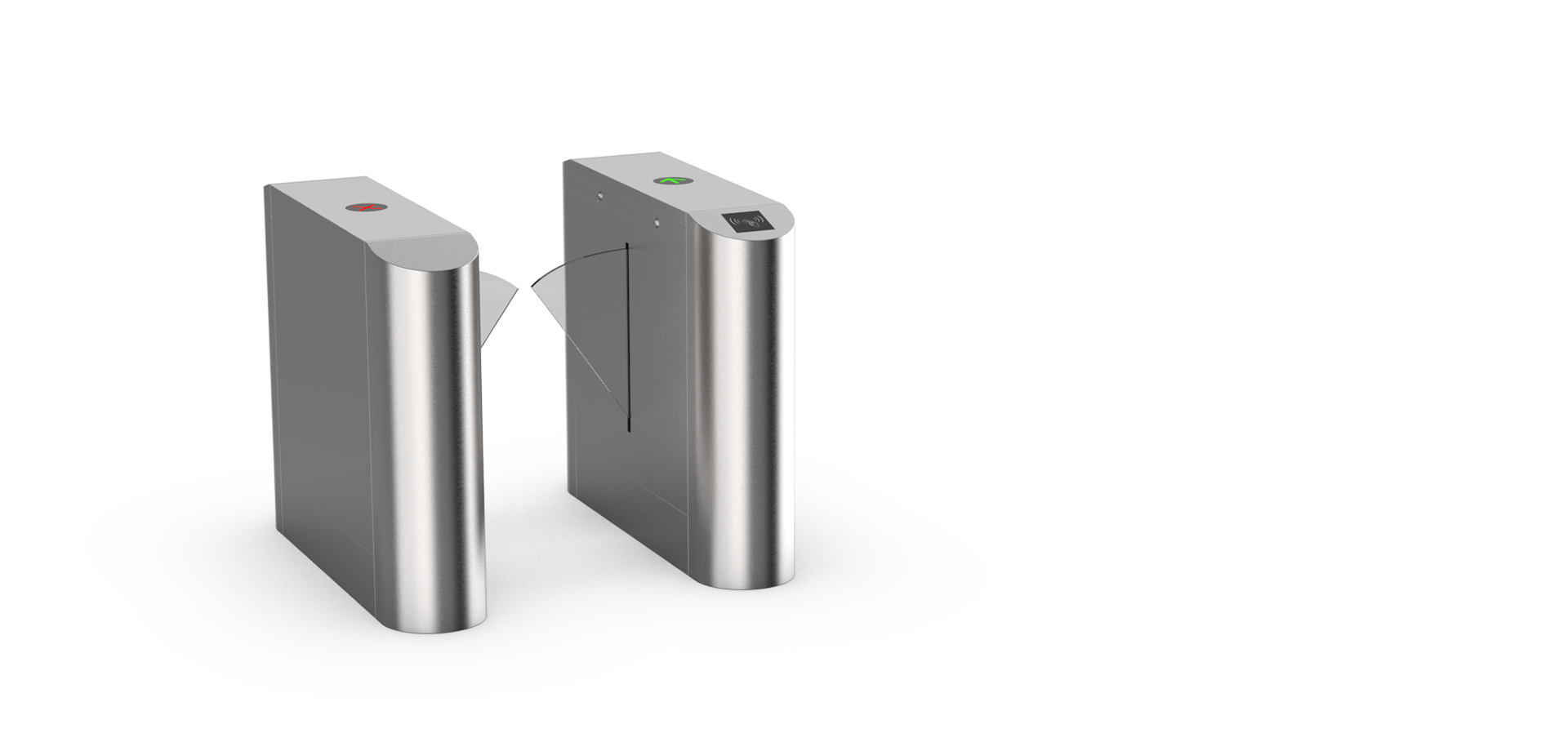

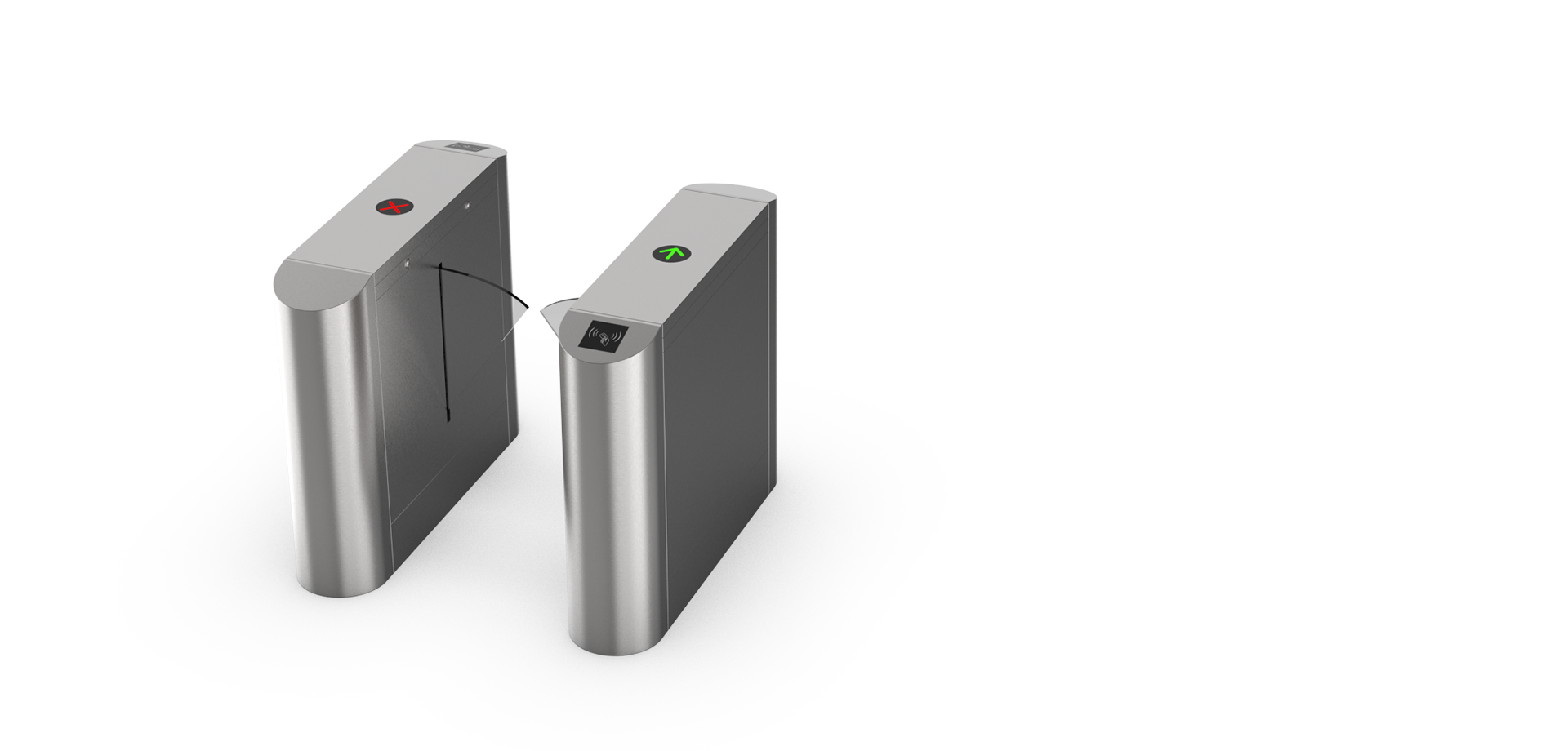

FLAP GATE DR.TD.6971X

Physical Para.

Cabinet Material

SUS304 Stainless Steel

Flap Panel Material

PMMA Acrylics/Plexiglass (Tempered Glass for Optional)

Product Dimension

L1200*W280*H980mm

IR Sensor

4 pairs

Electric Para.

Power Supply

AC220±10%V, 50±10%Hz

Drive Motor

DC24V Brushless Motor

Power

40W

Comm. Protocol

Level Type/Pulse/RS485/RS232

Input Interface

Relay(Dry Contact)

Passing Info.

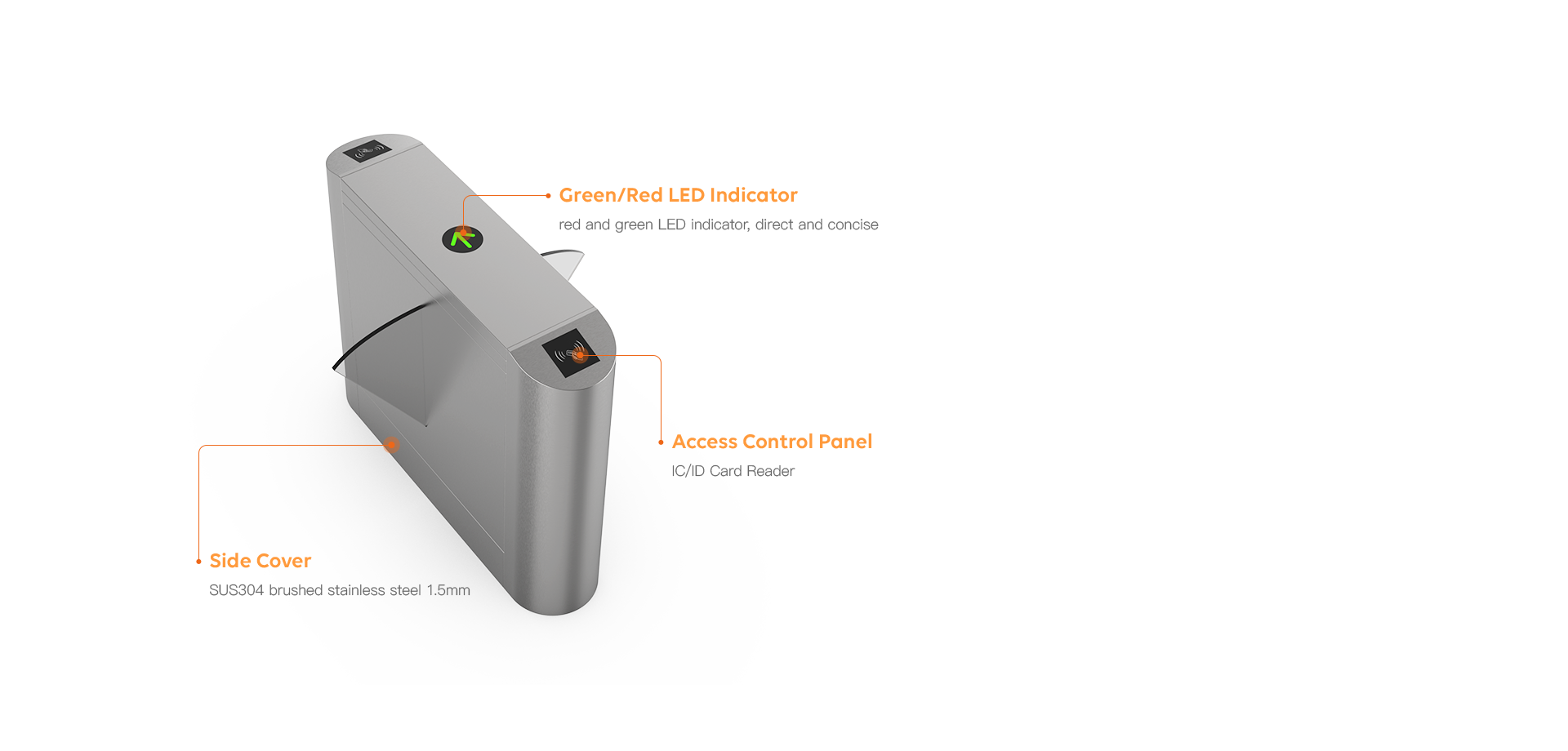

Passage Indicator

Red/Green indicator+ Blue LED light strips

Passing Direction

Uni-directional/Bi-directional

Passage Width

600mm

Passing Speed

30~40 people/min

Performance

Gate Open Speed

Fastest 0.5s, adjustable

Positioning Method

Motor+Encoder

Extras

Working Environment

Indoor, -20℃~70℃

Relative Humidity

≤90%, No Condensation

MCBF

5 Million Times

Noise

<50dB

IP Level

IP24

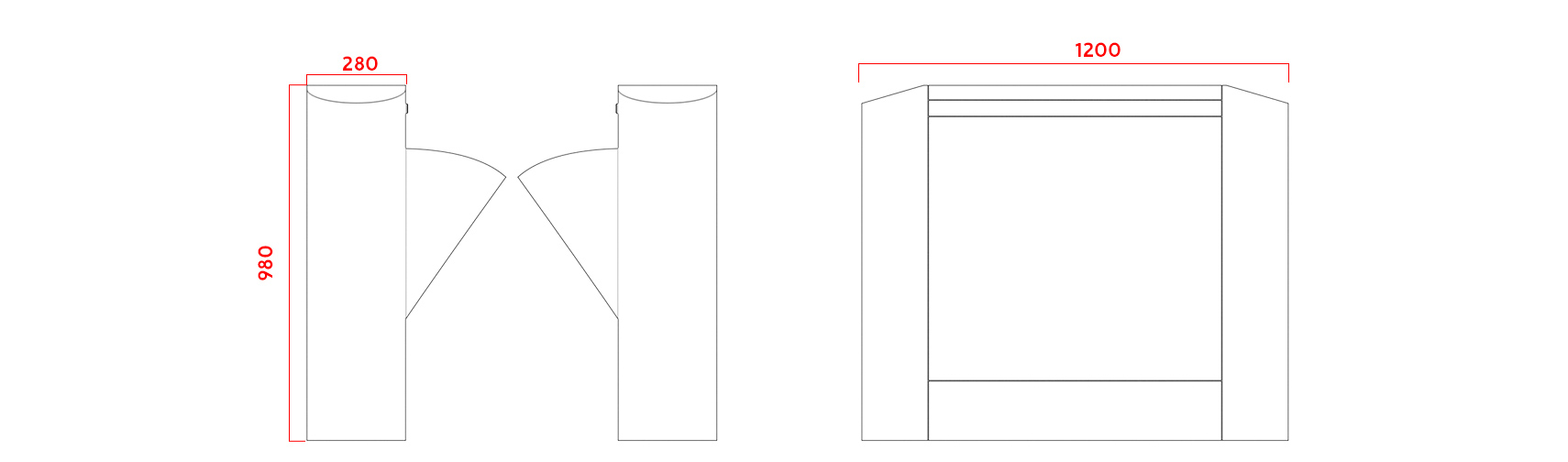

Dimension
