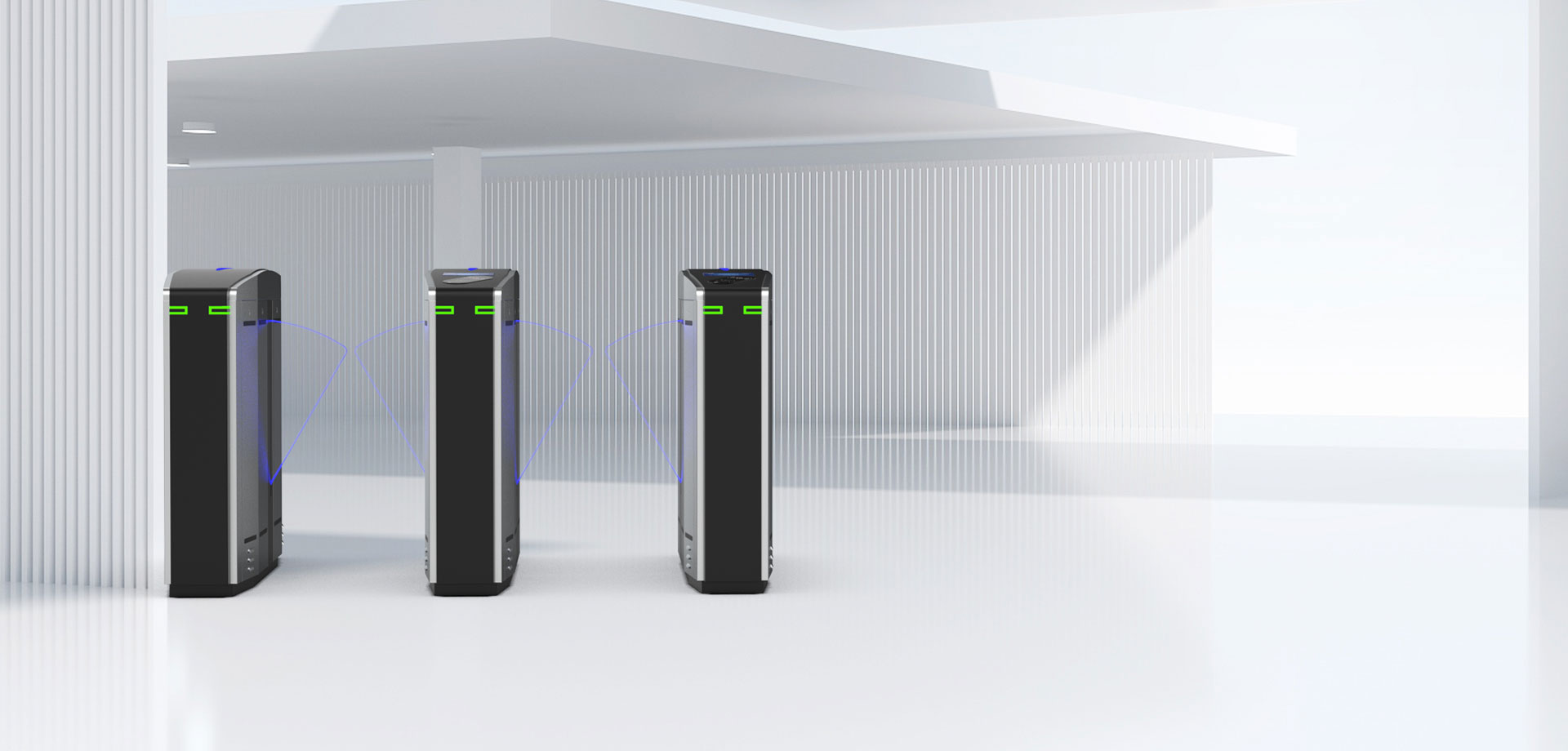

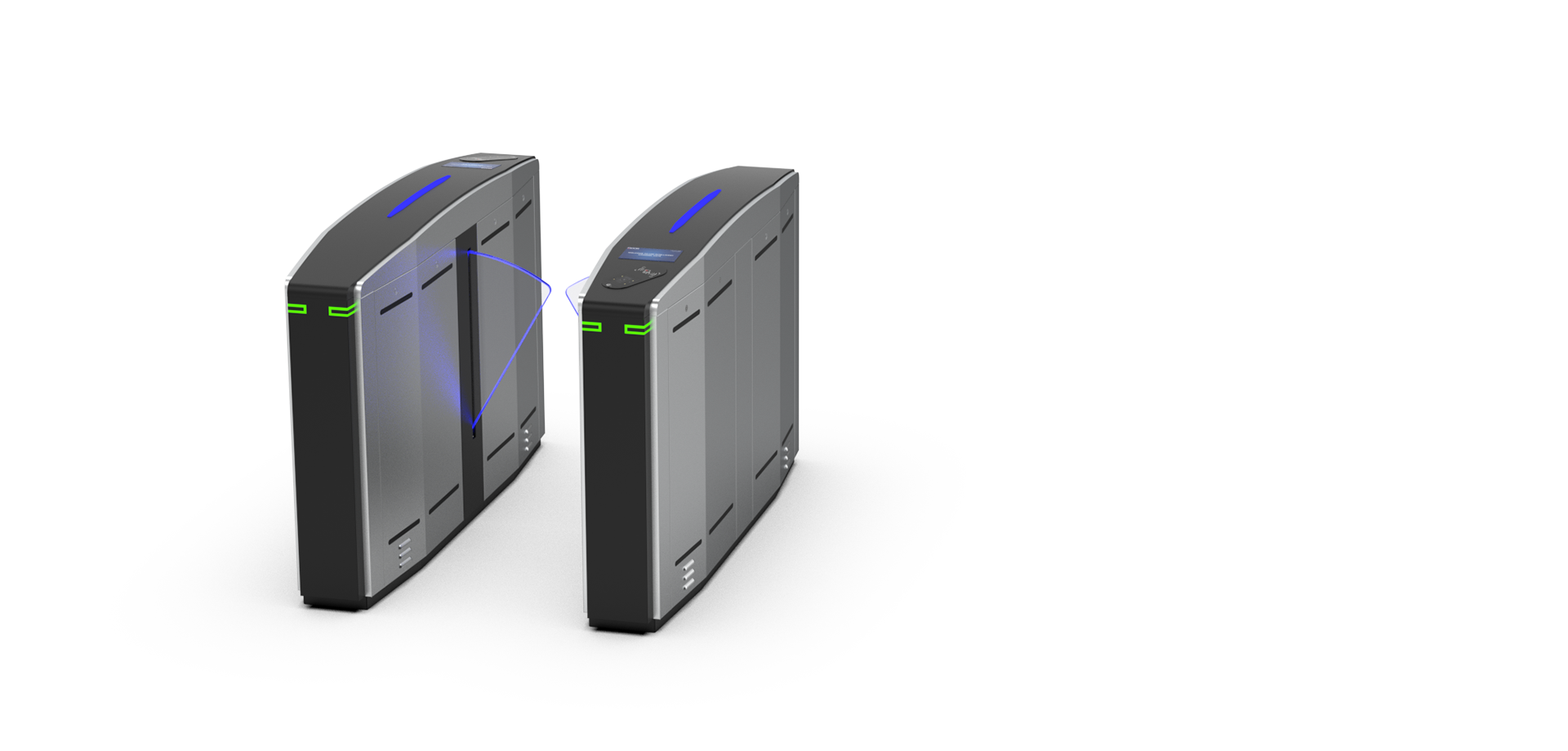

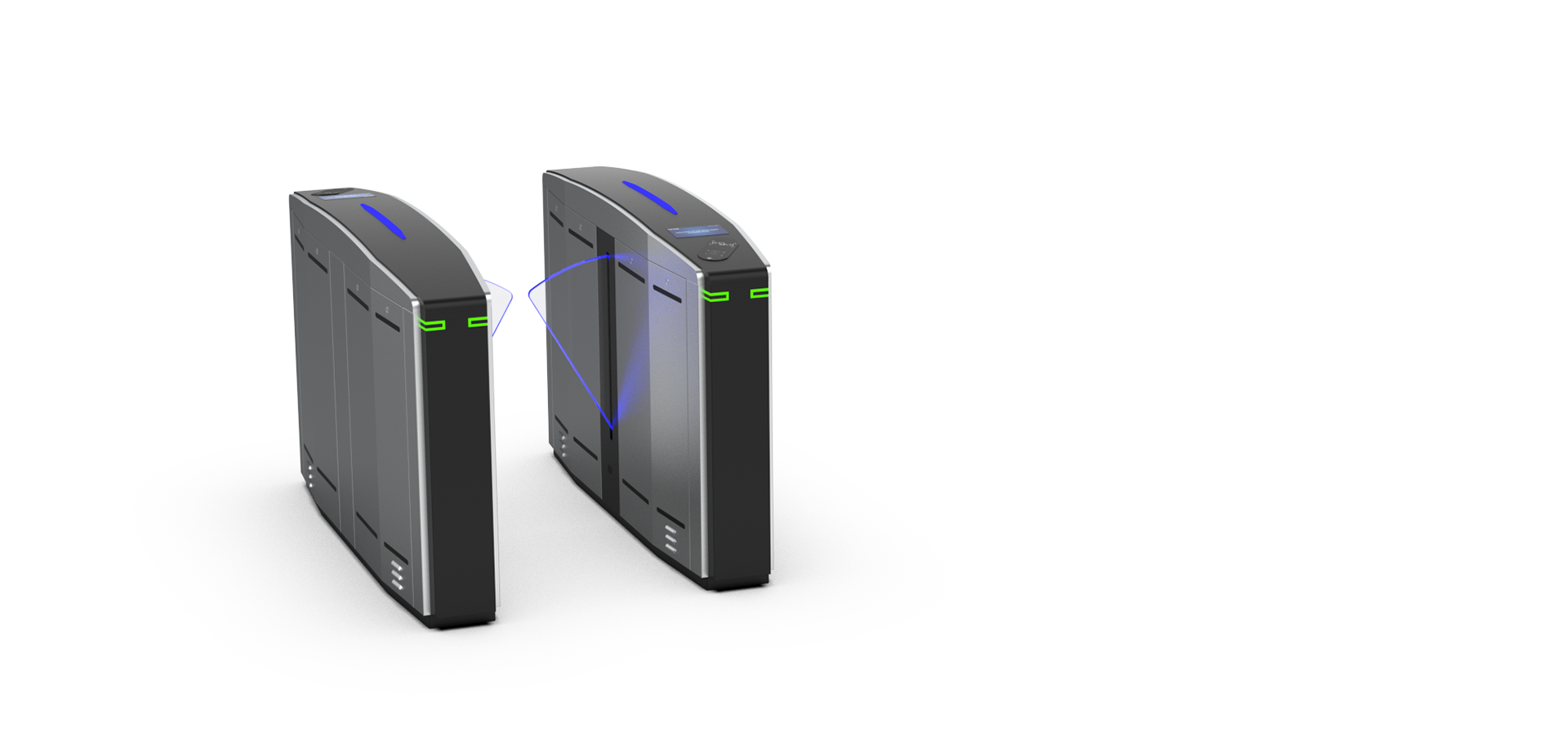

DR.TD.6983
Star product with popularity

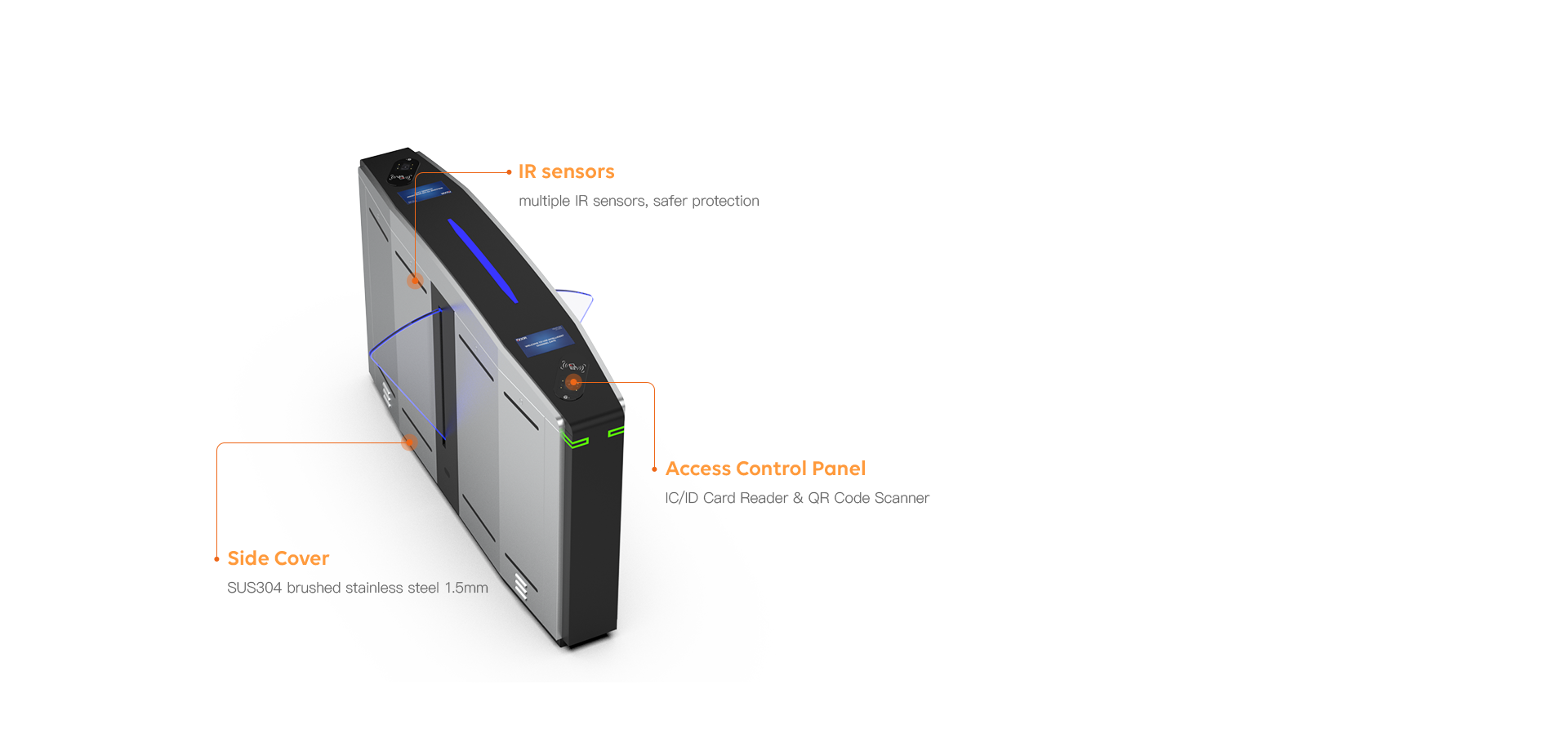

DR.TD.6983 achieves a integration of high-precision SUS 304 stainless steel for cabinet case, new generation of BLDC motor and encoder for operation and industrial-grade 32 bit ARM processor for control. The modular design makes the equipment easy installation, disassembly and maintenance. Various access modes offers a more rapid, dynamic and convenient passing method for pedestrian flow at intensive sites.
Get A Free Quote
FLAP GATE DR.TD.6983 | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel+Electroplating |
Flap Panel Material | PMMA Acrylics/Plexiglass (Tempered Glass for Optional) | |
Product Dimension | L1600*W280*H1000mm | |
IR Sensor | 7 pairs | |
Electric Para. | Power Supply | AC220±10%V, 50±10%Hz |
Drive Motor | DC24V Brushless Motor | |
Power | 40W(left/right); 60W(middle) | |
Comm. Protocol | Level Type/Pulse/RS485/RS232 | |
Input Interface | Relay(Dry Contact) | |
Passing Info. | Passage Indicator | Red/Green indicator+ Blue LED light strips |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | 550mm | |
Passing Speed | 30~40 people/min | |
Performance | Gate Open Speed | Fastest 0.5s, adjustable |
Positioning Method | Motor+Encoder | |
Extras | Working Environment | Indoor, -20℃~70℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 5 Million Times | |
Noise | ＜50dB | |
IP Level | IP24 | |

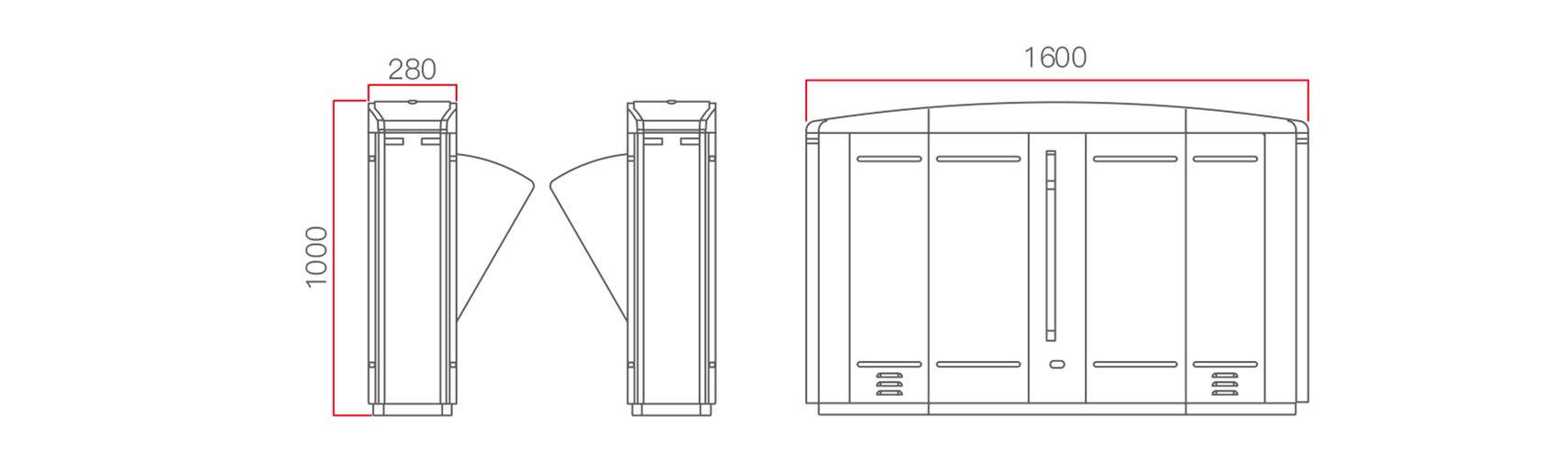

Dimension | ||
| ||
