VD.TD.6371XS-D
Star product with popularity

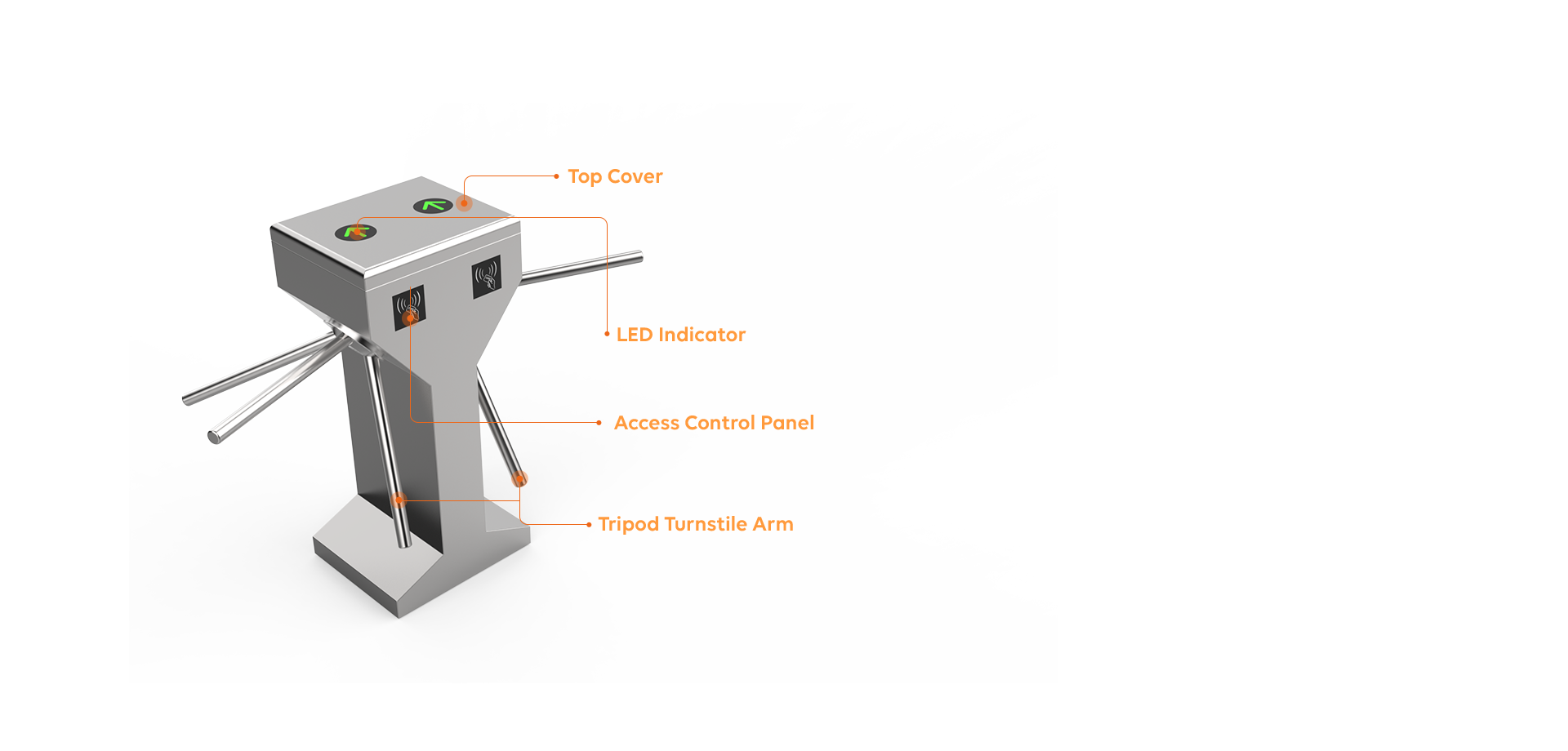

VD.TD.6371XS adopts an easy integration with additional devices. It is designed with an concise appearance, rust-resistance and durable. Through various read & write devices configured, it makes the control and management of entrance and exit passage more intelligent and convenient. In an emergency, tripod turnstile arm will drop off automatically with power off to facilitate people evacuation. It solves and improves the intensive queue and makes pedestrian flow effortless.
Get A Free Quote
| TRIPOD TURNSTILE VD.TD.6371XS-D | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Tripod Arm Material | SUS304 Stainless Steel | |
Product Dimension | L420*W500*H980mm | |
Electric Para. | Power Supply | AC110V/220±10%V, 50±10%Hz |
Drive Unit | Solenoid Valve | |
Comm. Protocol | RS485 | |
Input Interface | Dry Contact | |
Passing Info. | Passage Indicator | Red/Green indicator |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | ≤550mm | |
Passing Speed | 20 people/min (IC card) | |
Performance | Gate Open Speed | Fastest 1.5s |
Remote Distance | ≤1200m | |
Extras | Working Environment | Indoor/Outdoor, -15℃~60℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 3 Million Times | |
Noise | ＜50dB | |
IP Level | IP54 | |

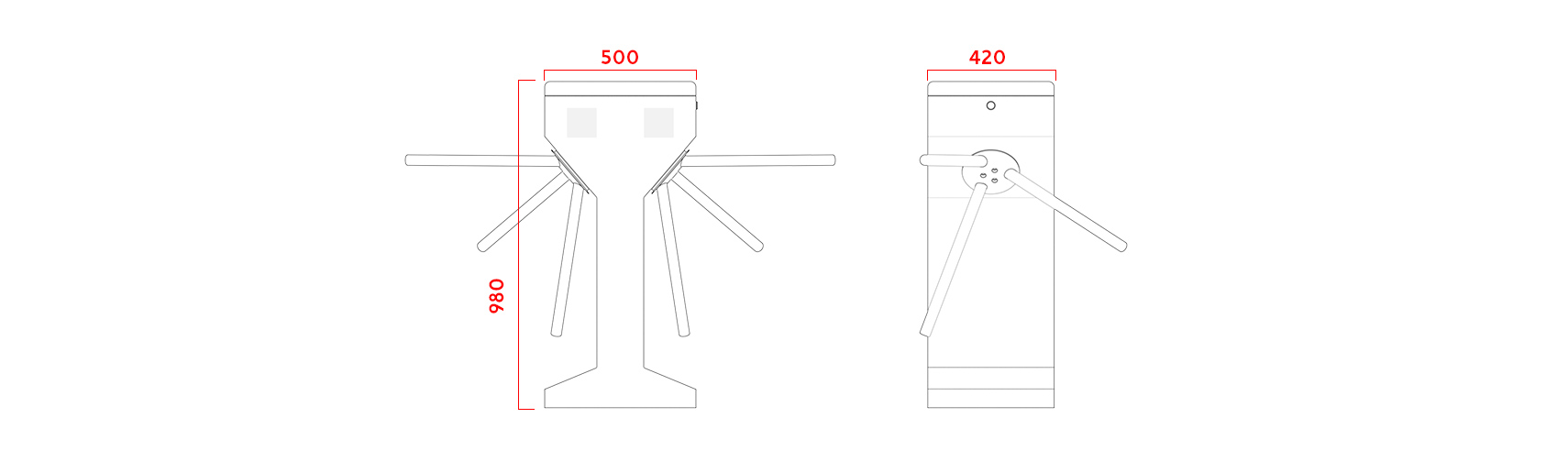

Dimension | ||
| ||
