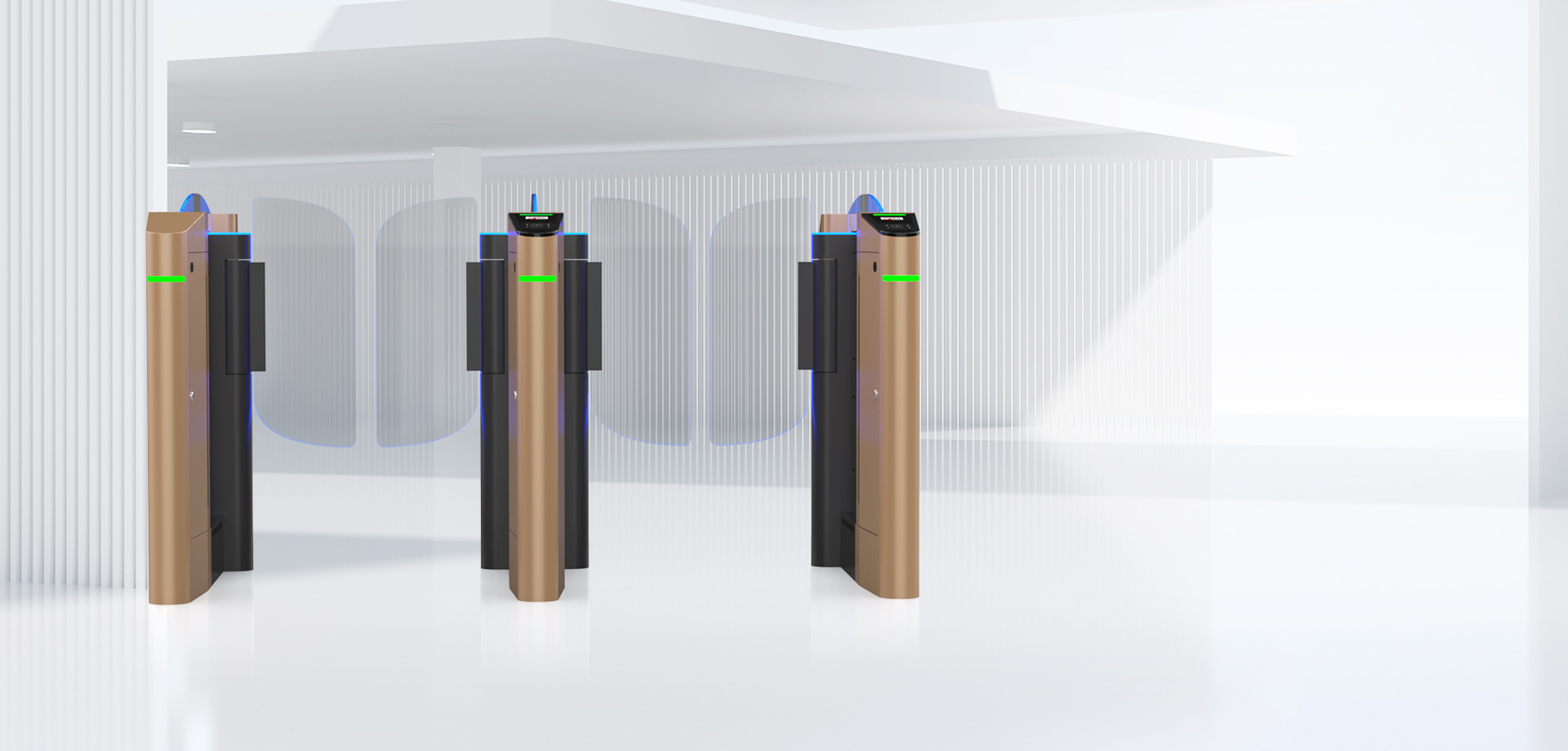

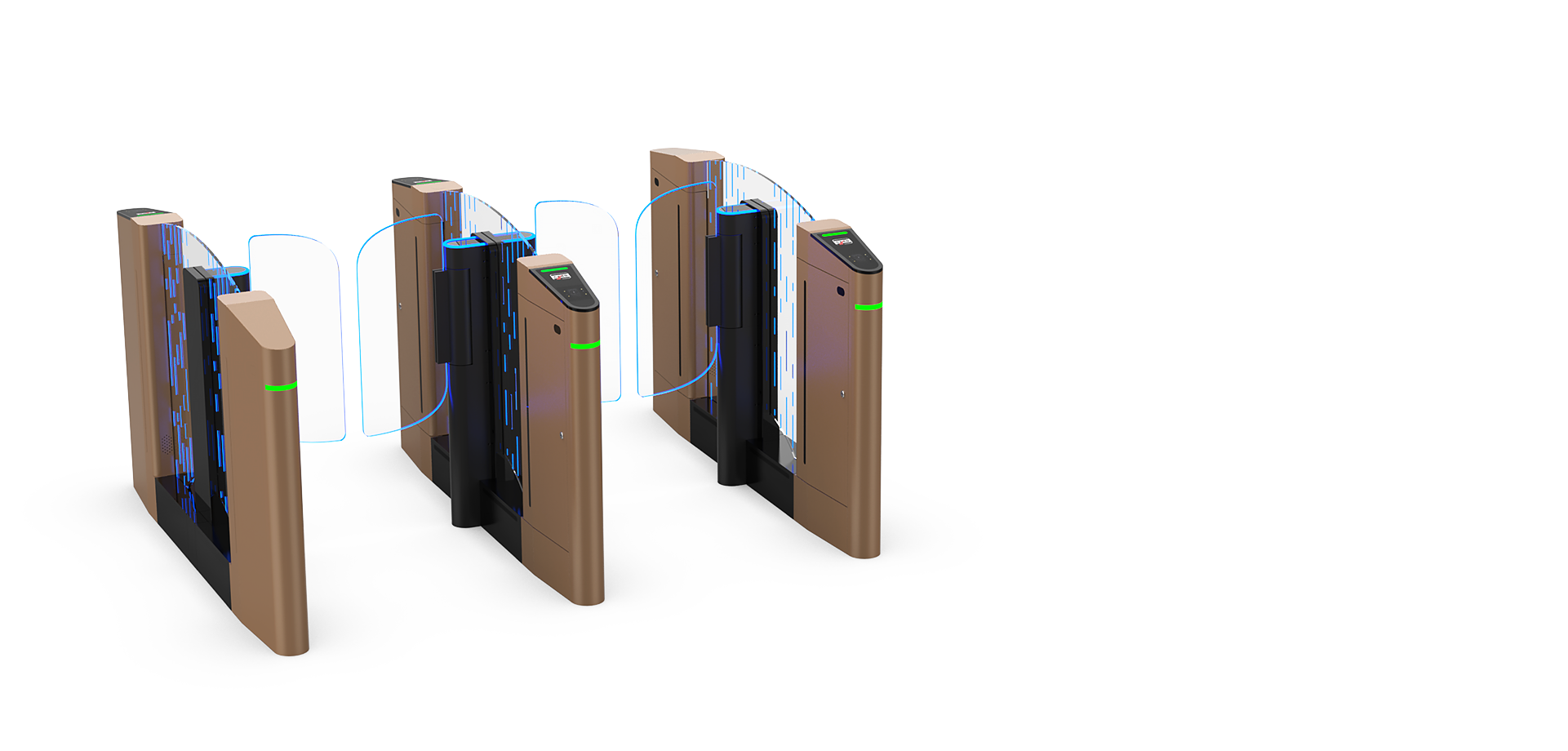

DR.TD.6628
Star product with popularity
DR.TD.6628 provide a fast, dynamic and secure way to manage access control. Modular design, light&color fusion and function variety enhance the possibility of product design more. Fine SUS304 stainless steel with paint baking and vacuum electroplating process improves aesthetic appearance and high quality. Interactive lighting system brings modern and futuristic visual enjoyment. Higher swing panel matched with Servo drive unit can be customized to meet higher security level requirement.
Get A Free Quote
| SPEED GATE DR.TD.6628 | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Swing Panel Material | PMMA Acrylics/Plexiglass (Tempered Glass for Optional) | |
Product Dimension | L1600*W140*H1050mm | |

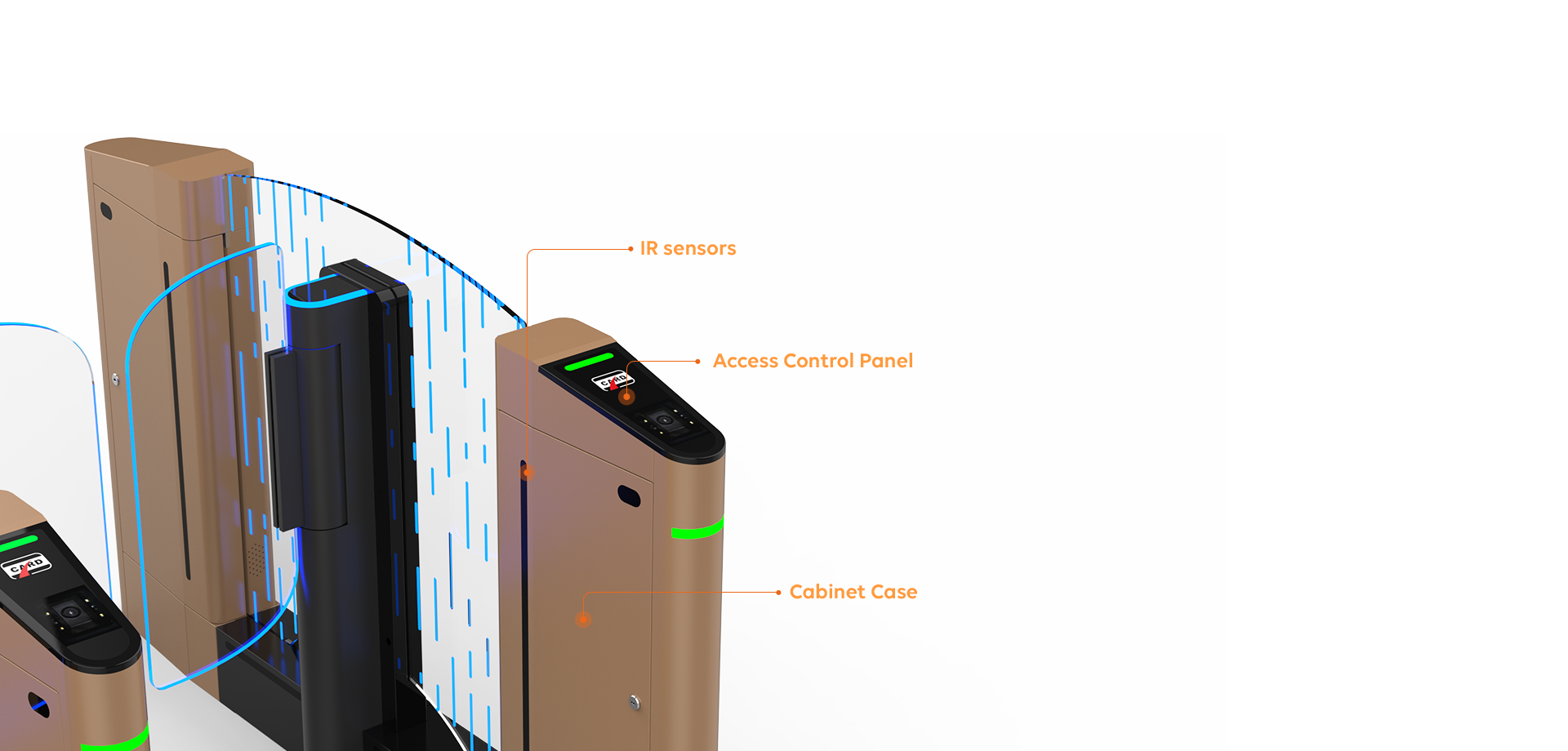

IR Sensor | 8 pairs | |
Electric Para. | Power Supply | AC220±10%V, 50±10%Hz |
Drive Motor | DC24V Servo Motor | |
Power | 100W(left/right),200W(middle) | |
Comm. Protocol | Level Type/Pulse/RS485/RS232 | |
Input Interface | Relay(Dry Contact) | |
Passing Info. | Passage Indicator | Red/Green indicator+ Blue LED light strips |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | 600~900mm, adjustable | |
Passing Speed | 35~50 people/min | |
Performance | Gate Open Speed | Fastest 0.3s, adjustable |
Gate Open Angle | 90°±5° | |
Positioning Method | Servo Motor+Clutch+Encoder | |
Extras | Working Environment | Indoor, -25℃~70℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 20 Million Times Certified | |
Noise | ＜50dB | |
IP Level | IP42 | |

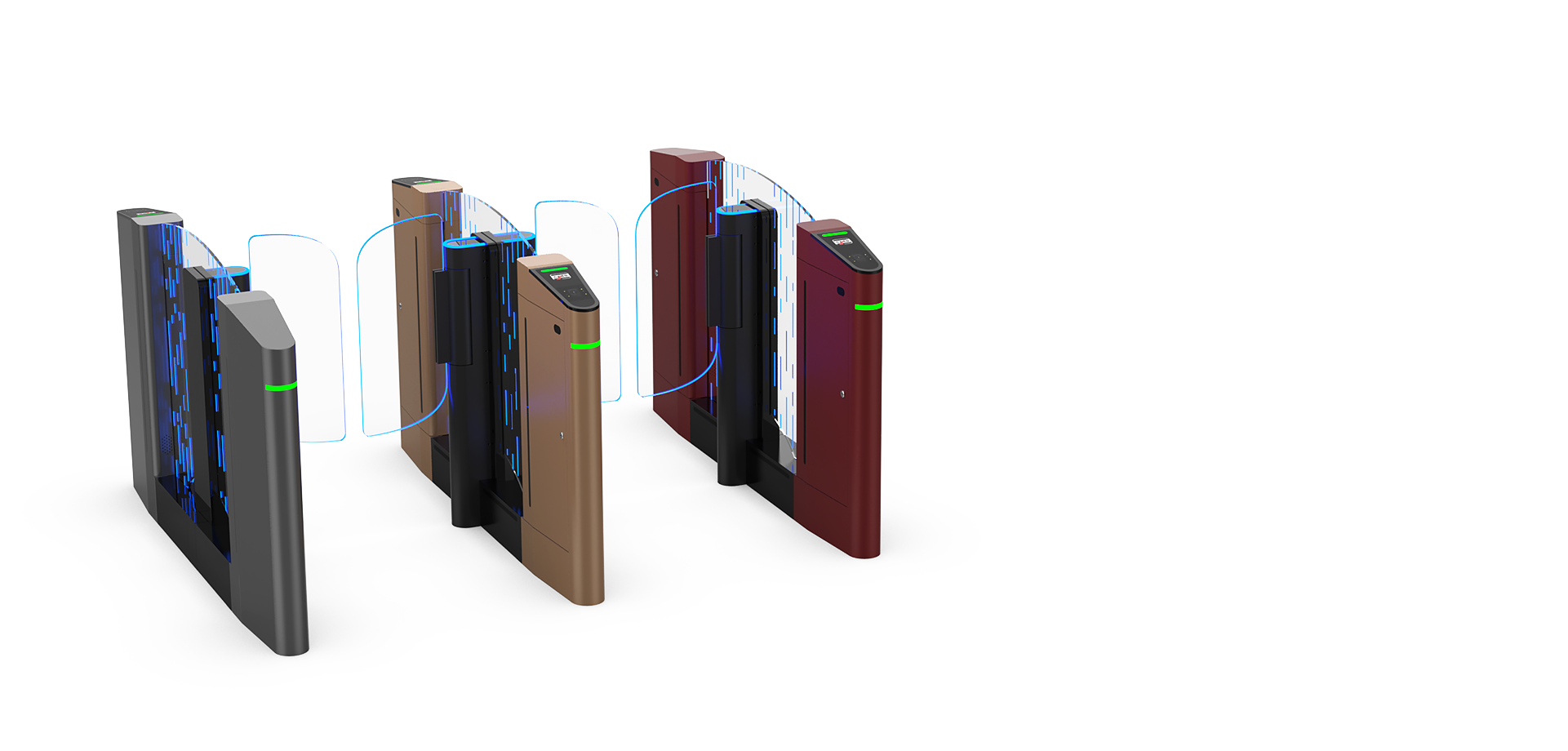

Color | Optional as Color Swatch | |
Dimension | ||
| ||
